What is a Socket Weld Outlet and what about its specification and advantages.

MSS SP – 97 weldolet is a pipe fitting used for branch pipe connection in pipeline system.It plays an important role in pipeline engineering in many industrial fields such as petroleum, chemical, electric power, shipbuilding, etc.

High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

ISO certified manufacturer of high pressure steel pipe fittings attract client with our best quality, service and competitive price.

Socket welded elbow can socket with pipes and welded on pipes.SW fittings are belong to forged fittings,the other type of forged fitting is threaded fittings.Forged fittings are high pressure fittings used in many applications.

Stainless steel 90 deg threaded elbow is popular because it is easy to install or replace.ASME B16.11 forged fittings are pipe fittings according to American Standard.There are many types fot customers to choose:NPT PT BSPP BSPT PF.

The specification of ASTM A182 Forged Pipe Fittings includes forged fittings, stainless steel, rolled alloy, forged alloy, pipe flanges as well as high-temperature service. Later then forgings and hot working, it would be cooled down to a certain temperature before heat treatment.

Carbon Steel ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

Concentric swage nipple is mainly used for vertical pipeline. eccentric swage nipple is mainly used in horizontal pipelines.

ASTM A105 Swage Nipple is a type of carbon Steel Pipe Fittings and commonly used for connection two pipes with different diameters. It belongs to pipe reducers and are used in small pipe size more often.

Class 3000 hex head plugs are used in the end of piping systems or equipments to achieve close function.ASTM A182 F304 forged pipe fittings are the most common used stainless steel pipe fittings because of the reasonable price and superior functions.Threaded plugs have 3000lb and 6000lb pressures for customers to choose.

Stainless steel socket weld couplings can be called simply as SS SW Couplings.ASME B16.11 forged fittings are the most used fittings all over the word because the American Standard are famous.Socket welded fittings can be provided 3000LB,6000LB,9000LB.

What is a Socket weld Uninon,what about its speicification and advantage

900LB slip on flange can slip on the pipes and welded with the pipes.Stainless steel flanges are popular because of the an-ti corrosive function.Stainless steel flange can used over 50 years.Flanges have many pressures:CL150, CL300, CL600, CL900, CL1500, CL2500.

Steel tee is a T-shaped pipe fitting with three branch pipes. It is used to divide pipes to adjust flow and change direction.

90 deg socket weld elbows are belong to ASME B16.11 stainless steel pipe fittings.SW elbows have two types:90 DEG and 45 DEG.SW pipe fittings including:Elbow, Tee, Cross, Coupling, Union, Cap, Reducing Insert, Sockolet.Three pressures for customers to choose:3000LB,6000LB,9000LB.

The main purpose of using pipe caps is to waterproof the connections. They are also used to close the the ends of hydraulic or pneumatic pipes and tubes. The use of Forged End Pipe Caps is common in many industries such as oil and gas industries, chemical industries and water supply lines.

Threaded coupling means the coupling has threads at one or both ends. Socket weld coupling means the coupling with socket at one or both ends.It is a commonly used accessory for industrial pipe connections.

These Stainless Steel Pipe Fittings are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

Different from buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally, for piping whose nominal diameter is NPS 2 or smaller.

Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.

Slip-On flanges are commonly lower in price than weld-neck flange.However, customers should bear in mind that this initial cost saving may be diminished by the additional cost of the two fillet welds required for proper installation.

This is a Pipe fitting with the same size on three sides. The main pipe of these tee is different from the diameter of the branch pipe, and the diameter of the main pipe is larger than that of the branch pipe.

Socket Weld 90 Elbow is planned for wide utilize totally different industries like oil refineries, chemical processing, petrochemical, and numerous other businesses.

5in SW elbow is used to socketed with pipes and then welded on pipes.ASME B16.11 pipe fittings mean forged pipe fittings.Forged pipe fittings can be divided in socket weld fittings and threaded fittings.

Socket Weld Half Couplings is utilised in various applications in order to provide a torque free sealing and a leak free connection. Socket weld coupling is a very short section of pipes with socket bore at both ends or one end, but both can afford high pressure of 3000#, 6000#, 9000#. The Socket Weld Half Coupling are often directly welded to the run pipe, to form a branch connection.

A Socket Weld Fittings is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Once correctly inserted, fillet type sealing welds are applied to join the pipe to the fitting.

Stainless steel pipe fittings including Tee,Cross, Elbow, Reducer, Coupling, Nipple, Plug & Cap,Union.They can be connected with pipes by welding, socket and thread.

The branch pipe stand is also called branch pipe seat, saddle and saddle type pipe joint. Reinforced pipe fittings mainly used for branch pipe connection, instead of branch pipe connection such as reducing tee, reinforcing plate and reinforced pipe section

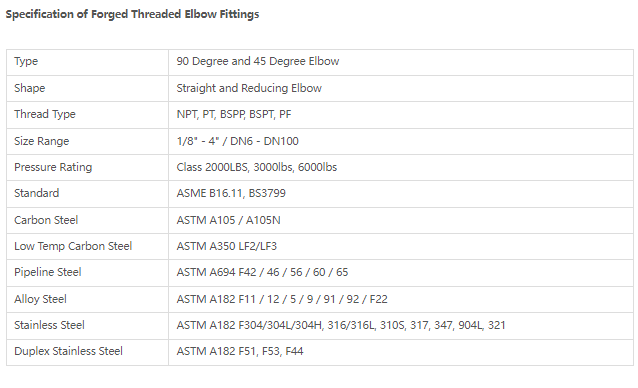

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Range: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97
