Threaded Fittings Tee pipe fitting

ASTM A105 Threaded Pipe Fittings are used for installing or repairing piping or tubing systems that convey liquid, gas, and occasionally solid materials. SA 105 fittings comes in a variety of sizes to fit the pipe they will connect. It is useful to combine, divert or reduce the flow of the water supply.

3000LB threaded couplings have the most widely using range.ASTM A105 forged fittings is carbon steel fittings belong to American Standard.Threaded couplings have two types:Half and Full.The other pressures could be chosen:#2000,#6000.

BSP Pipe Fittings Specification:
Type: Elbow /Tee /Cross /Coupling /Cap/Union /Nipple /Plug /Bushing
Material: CS/LOW TEMP CS/PIPELINE STEEL/ALLOY STEEL /SS/ DUPLEX SS
Standard: ASME B16.11, BS3799
Size: 1/8IN-4IN/DN6-DN10
Rating: 2000lbs,3000lbs,6000lbs
British Standard Pipe Parallel (BSPP)

We are manufacturer of High Pressure Pipe Fittings from China. Threaded fittings are available in pressure ratings 2000LB, 3000LB, and 6000LB; Threaded Coupling Dimension is 1/8″ –  4″ / DN6 – DN100.

The threaded pipe union is similar to the coupling and can be flexibly disassembled when it needs to be repaired or replaced. The reducing threaded union is easy to disconnect and link, and can be operated multiple times.

High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

TOE means threaded at one end when translated. Thus, we can say that a nipple TOE is a nipple that has one threaded end.
In this case, we have the acronym TBE for “threaded both ends” which means threaded at both ends. In other words, this is the most typical type of nipple as described above for connecting two parts or fittings with female threading.

Hex head bushing is a commonly used bushing,there is also has flush bushing.Bushing is belong to forged fittings and it only available in threaded type.Threaded pipe fittings are easy to Installation and removal.

High Pressure Steel Pipe Fittings contain buttwelding pipe fittings, socked weld fittings and threaded pipe fittings. Threaded Steel Coupling is a short piece with screw in NPT or BSP ends or one end, which is available in stainless steel, alloy steel and carbon steel. The size range is DN6-DN100. There are various grade of A694 Threaded Coupling, Such as A694 F42 / 46 / 52 / 56 / 65 / 70

SS304 90 deg elbow is a stainless steel pipe fitting used to changes the direction of the flow in 90 degree.Threaded steel pipe fittings are a type of forged steel pipe fittings.The other forged fitting is SW pipe fitting.

Steel pipe elbow can be divided into 3 types as buttweld, threaded, socket weld in accordance with connection.Threaded elbow is more convenient compare with the buttweld and socket weld elbow.

Concentric swage nipple is mainly used for vertical pipeline. eccentric swage nipple is mainly used in horizontal pipelines.

High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

Stainless steel threaded pipe fittings are very popular forged fitttings because of the excellent anti-corrosion function.ASME B16.11 forged pipe fittings are SW pipe fittings and THD fittings.There are threaded pipe fittings in the picture.SHANGHAI ZHUCHENG PIPE FITTINGS MANUFACTURING CO LTD is an excellent pipe fittings and flanges supplier from China.

Threadolet has the same basic design as a weldolet. The commonly used manufacturing standards of the branch stand include MSS sp-97, GB / t19326 and other standards.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ – 4″ / DN6 – DN100
Materal: Stainless Steel, Alloy Steel and Carbon Steel

Threaded elbow used thread connection to connect with the pipes.Pipe elbows have three types:THD (threaded),SW (socket weld),BW (butt welded).These elbows used different connections to connect with the pipes in piping system.Class 3000 forged fittings are the most used high pressure fittings.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet; while ASME B16.11 threaded fittings can be furnished in product forms of Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, plug and bushing.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet; while ASME B16.11 threaded fittings can be furnished in product forms of Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, plug and bushing.

Swage Nipple are similar to reducers, but they’re smaller, and they’re used to link larger screwed, or socket welded pipes to smaller screwed or socket welded pipes. They come in concentric and eccentric varieties, just like reducers. Swages come in a variety of end

A threaded bushing, also known as a threaded insert, is a fastener element that is inserted into an object to add a threaded hole. Bushing Threaded Types: NPT  PT  BSPP  BSPT  PF.

CL3000 threaded couplings are the most used pressure of couplings,there are still CL2000 and CL6000 to choose.ASTM A105 forged pipe fittings are usually be chosen because of the affordable price and great functions.

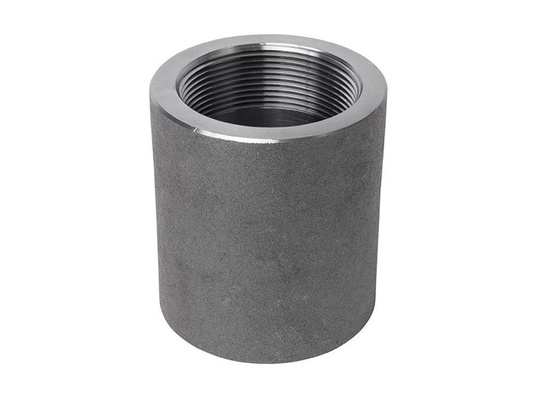

Full Coupling: Both ends of the full thread coupling are threaded. Half Coupling: One end of a half thread coupling is threaded and the other end is welded.

Socket Weld Half Couplings is utilised in various applications in order to provide a torque free sealing and a leak free connection. Socket weld coupling is a very short section of pipes with socket bore at both ends or one end, but both can afford high pressure of 3000#, 6000#, 9000#. The Socket Weld Half Coupling are often directly welded to the run pipe, to form a branch connection.

These Stainless Steel A182 Threaded Union are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

Swaging nipple (also known as reducing nipple) is a forged pipe fitting. It is used to change the diameter of the pipe and connect two pipes of different sizes.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97
