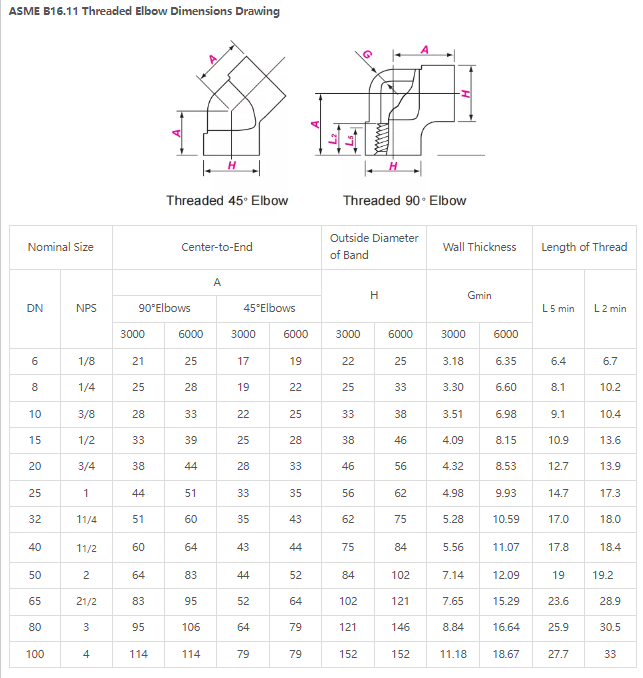

Stainless steel pipe fitting thread 90 degree 1.5D elbow

Stainless steel tee has three types:BW,SW,THD.These are threaded tees in the picture.Threaded fittings have pressures:CL2000,CL3000,CL6000.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet; while ASME B16.11 threaded fittings can be furnished in product forms of Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, plug and bushing.

Shanghai Zhucheng is well known manufacturer of MSS SP-83 Union, consists of three parts: a nut, a female end and a male end. Our offered Threaded Pipe Union similar to a coupling, allows the convenient future disconnection of pipes for maintenance or fixture replacement. Threaded Reducing Union makes easy connection and disconnection, multiple times whenever we need.

Threaded Union used in different industries applications like chemical processing, oil refineries, petrochemical and many other industries.Our offered Threaded Union Fitting is Stocked for Immediate Shipment.We are also supplier of Threaded Dielectric Union which breaks the electrical path with a plastic liner between its halves, limiting galvanic corrosion.

SW (socket weld) elbow is high pressure forged fitting which can used in many industries ‘ pipe systems.SW elbows have 90 deg and 45 deg.SW elbows have pressures: 3000LB,6000LB,9000LB.SS304 fittings are always used in chemical industries because of the excellent corrosion resistance.

ASTM A106 lateral tee is a carbon steel pipe fitting which plays an important role in pipe systems.Class 3000 pipe fittings are very popular because the pressure can be manufacture in both THD fittings and SW fittings.

Steel tee is a T-shaped pipe fitting with three branch pipes. It is used to divide pipes to adjust flow and change direction.

The equal cross is one kind of the pipe cross,  the equal cross means all the 4 ends of the cross are in same diameter.
The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

Stainless steel pipe fittings including Tee,Cross, Elbow, Reducer, Coupling, Nipple, Plug & Cap,Union.They can be connected with pipes by welding, socket and thread.

Socket weld Elbow forged fitting has varieties of features such as reliability, durability and dimensional precision.

BS3799 F304 Threaded Pipe Fittings are named by its manufacturing forging process and produced according to ASME B16.11, MSS-SP-79\83\95\97 and BS3799 standards.

There are different types such as the threaded reducing hex nipple or the Stainless Steel Threaded Hex Nipple. However, it is different from ordinary threaded nipple.

Threadolet has the same basic design as a weldolet. However the main difference is the fitting has a female threaded connection to link to the branch connection. This makes a 90° branch and comes in full size or reducing for a straight piece of pipe

F316 threaded  caps are components used to close the ends of stainless steel pipes or pipe fittings, and achieve the functions of sealing and fixing through threaded connection.

ASME B16.11 forged fittings are popular because of the famous American Standard and the variety products.Socket weld (SW) fittings and threaded (THD) fittings are both forged fittings.Stainless steel pipe fittings are always chosen in corrosive and chemical environments.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Socked Weld Coupling , Half Coupling, Boss, Cap, Union and Sockolet.

ASTM A182 F316 socket weld couplings are used in many industires because stainless steel have a very long using period.SW fittings are belong to ASME B16.11 forged fittings,only can used with small size pipes in ASME Standard.The pressures have #3000,#6000,#9000 to choose.

SW tees have two types:Equal and Reducing.SW fittings have same ranges of size(1/8”-4”) and pressures(2000lb,3000lb,6000lb,9000lb).Class 3000 is the most common used among these pressures.Class 3000 can be labeled as 3M,where M means 1000,class 3000 fittings can withstand up to 3000 PSI.

Different from buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally, for piping whose nominal diameter is NPS 2 or smaller.

Swage nipple is a common accessory in industrial pipeline connection. Common threaded short joints are divided into double head external thread, single head external thread, flat head external thread, and short joints connected by flanges.

Flush Bushing: Flush bushing are used in piping systems. They are installed in the pipe to reduce the size of the pipe. Hex Head Bushing: A hex bushing is a threaded fitting with a hex head used to tighten the fitting into a threaded opening.

ASME B16.11 is the standard of both socket-welding and threaded. Threaded fittings are available in pressure ratings Class 2000, 3000, and 6000;
Socket welding fittings are available in pressure ratings Class 3000, 6000, and 9000.

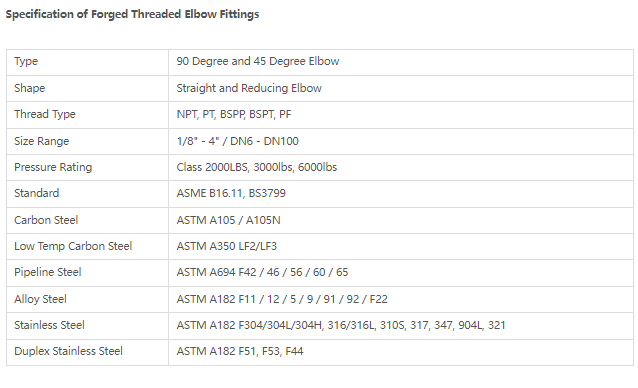

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

Threadolet considered to a threaded fitting, and it is manufactured in 3000 and 6000 classes. t typically is in the size range of 1/2″ to 2” and is welded over a hole either drilled or burned in the pipe.

Large diameter flat welding flange has less high-pressure suitability compared to its weld neck counterpart. The basic ring style is suitable for the occasion of low pressure. The butt weld category of the flange is known as a weld neck flange. It suits the occasion of high temperature and pressure as defined in the ASME B16.47 code.

Swage Nipple are similar to reducers, but they’re smaller, and they’re used to link larger screwed, or socket welded pipes to smaller screwed or socket welded pipes. They come in concentric and eccentric varieties, just like reducers. Swages come in a variety of end

What is a Socket weld Uninon,what about its speicification and advantage
