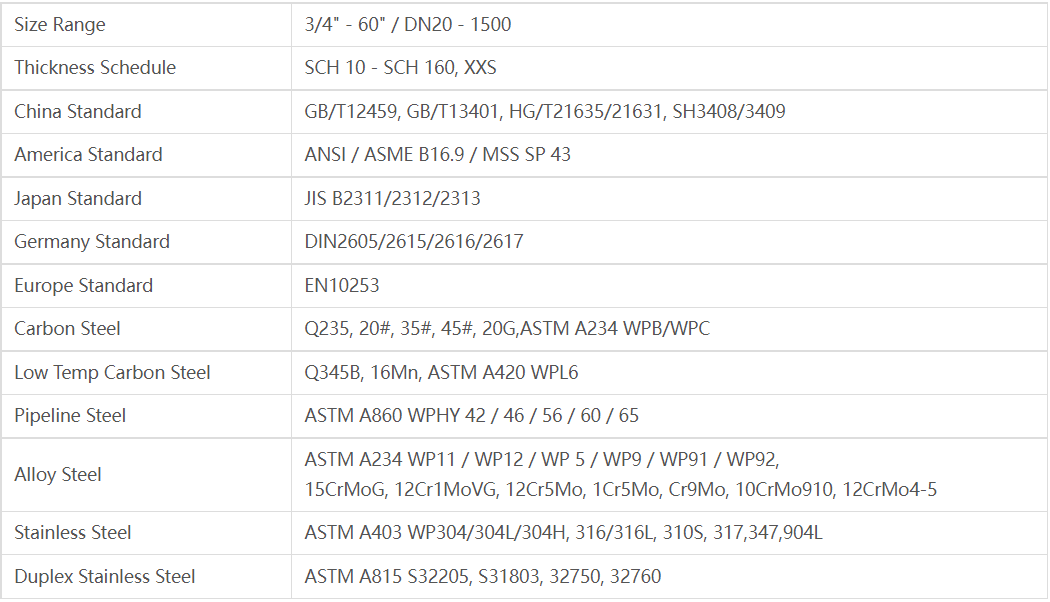

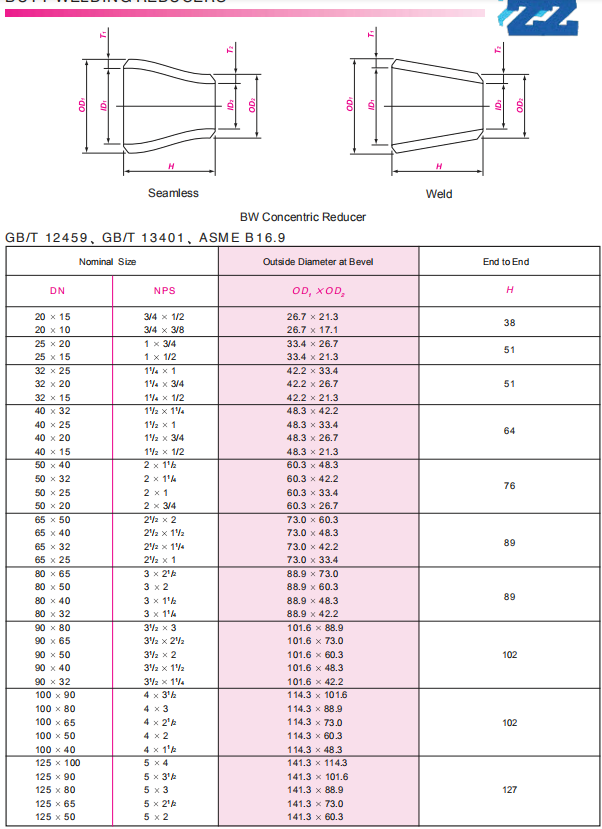

Stainless Steel A403 WP310S DN200*150 Concertric Reducer

According to its radius of curvature, there are long radius elbow and short radius elbow. Long radius elbow refers to its radius of curvature is equal to 1.5 times the outside diameter of the pipe, that is, R=1.5D; A short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R= 1.0d.(D is the diameter of the elbow, and R is the radius of curvature).

45 ° elbow is also called “45 elbow or 45 ell”, and its bending mode can change the flow direction of fluid / gas in the pipeline by 45 °. The function of a 45 Degree Long Radius Elbow is same as 90 degrees long and short elbow, but the measurement and dimensions are different to that of a 90 degree long and the short elbow.

‘The long radius elbow is the elbow which the radius of curvature of is 1.5 times the diameter of the pipe; if the radius of curvature is greater than 1.5 times, the long radius elbow will be called the bend. The short radius elbow means that the radius of curvature of the elbow equals the diameter of the pipe, or 1 time the diameter of the pipe in common words.

The butt welded eccentric reducer is a pipe fitting used to connect pipes of different diameters, and its central axes do not overlap, and there is an eccentricity.

DN1400 BW elbow is a very large size in pipe fittings.The size of fittings are important for piping systems.Carbon steel fittings are used in many applications because of its great excellent functions.

Butt weld fittings would also be referred to as welded pipe fittings. When these would be used in stainless steel and carbon steel, they would be able to offer certain advantages as compared to socket weld and threaded fittings. Whereas socket weld would only be available up to a specific size, you would find butt weld fittings to be available in sizes starting 1/2 inch to 72 inch.

BW (butt welded) reducer can be concentric (COC) reducer and eccentric (EEC) reducer.Among these two types,concentric reducer is more commonly used.The materical of reducer can be carbon steel,alloy steel and stainless steel.Clients can choose different material as their demands.

Pipe crossing is used where four pipes intersect. The cross pipe may have one inlet and three outlets, or three inlets and one outlet. The diameter of the outlet and inlet can be the same or different.

It is used to handle any high or low weight fluid flow through the tee.Reducing tee is a kind of pipe fitting whose branch size is smaller than the size of pipeline parts. It is used for main pipe string accessories, solvent welding accessories, side outlet and conflicting soluble welding accessories. Such fittings are important because they meet two needs, that is, to connect or separate liquid streams. They are widely used in positive and vacuum applications.

Tee welding joints are formed when two pieces intersect at a 90° angle. This results in the edges coming together in the center of a plate or component in a ‘T’ shape. Tee joints are considered to be a type of fillet weld, and they can also be formed when a tube or pipe is welded onto a base plate.

BW elbow is popular because of the strong and permanent connection.The anti corrosion function of carbon steel and alloy steel is not as good as stainless steel,so coated pipes and fittings have paint or oil to protect the fittings during sea transportion.

Reducing tee is used to change the direction and reduce the flow of the fluids or gas.Butt welded pipe fittings can weld with the pipes so that can anti leakage effectively.Tees have two types:Equal Tee and Reducing Tee.The commonly used wall thicknesses for butt welded fittings are SCH STD,SCH 80,SCH 160.

The characteristic of concentric reducers is that their center lines coincide, that is, the centers of the large and small heads are on the same straight line. This design allows the flow direction of the fluid to remain basically unchanged when passing through the reducer, reducing the resistance caused by the change in flow direction.

90 deg stainless steel elbow is a popular type of elbows.Stainless steel pipe fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.Shanghai Zhucheng is an excellent pipe fittings manufacturer who supplys high quality pipe fittings and flanges for years.

10in equal elbow is used to transport flow in piping system.A234 WPB is the most used grade for carbon steel butt welded fittings.Elbows can be 90 degree and 45 degree.These elbows have similar functions,the only difference is the 90 degree elbow can changes the direction in 90 deg while the 45 degree elbow can changes in 45deg.

ASTM A234WP5 6IN SCH40 90DEGREE ELBOW Fittings attaches readily to plastic, copper, cast iron, steel and lead. It can also attach to rubber with stainless steel clamps. Available in many materials like silicon, rubber compounds, galvanized steel etc,

ASME B16.9 tee is a butt welded tee .ASME B16.9 is American Standard for BW fittings.Carbon steel fittings are always been chosen because of the great functions and affordable price.

Butt weld elbow is a steel elbow formed by hot pressing or forging. Its connection form is to directly weld the elbow and steel pipe. Butt welded elbows are mainly used for elbow with higher pressure and temperature than other connection types. According to the valve body material, it has stainless steel, carbon steel and alloy steel elbow

Fittings that change direction in a piping system are called elbows which available in 90 degree and 45 degree long radius elbow. Both of them has the center line at 1.5 x NPS from elbow end.

What is a 90 degree elbos and its classification.

Concentric reducers are tapered and are used when the diameter between pipes changes. It can be axially shifted and externally reconfigured to offer more efficient reducer connection.

These Stainless Steel Pipe Fittings are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

ASTM A234 WPB is a common grade for 90 degree long radius elbow, which is one of the highly demanded. They available in a large size and thickness range. They have a good performance and suffices most industrial pipeline needs.

Steel pipe elbow is a key parts in a piping system for to change the fluid flow direction. It is used to connect two pipes with same or different nominal diameters, and to make the pipe turn to a certain direction of 45 degree or 90 degree.
