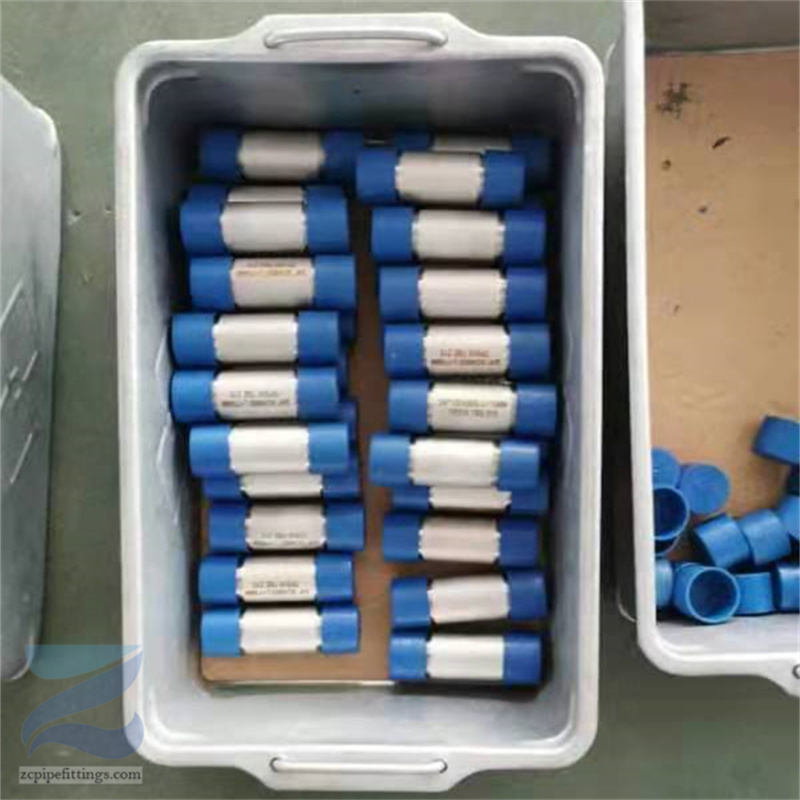

Stainless Steel A182 Threaded Nipple Dimensions

Carbon Steel: ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

ASTM A182 F304 threaded half nipples, are nipples with one end thread and the other end weld. The other shape of nipples are threaded full nipples,which are both ends with thread.Pipe nipples also have sock weld connection,they are similar to threaded nipples,the only difference is threaded nipples use thread,while SW nipples use socket welded.

Class 3000 hex head plugs are used in the end of piping systems or equipments to achieve close function.ASTM A182 F304 forged pipe fittings are the most common used stainless steel pipe fittings because of the reasonable price and superior functions.Threaded plugs have 3000lb and 6000lb pressures for customers to choose.

The length of the threaded nipple is usually determined by the total length of the thread. Swaging nipple (also known as reducing nipple) is a forged pipe fitting. It is used to change the diameter of the pipe and connect two pipes of different sizes.

Carbon steel pipe fittings are used in many applications because of its great excellent functions.Carbon steel pipe fittings can manufactured as THD (threaded) fittings,SW (socket weld) fittings and (BW) butt welded fittings.The specifications are in the content below.

ASTM A182 F304 Threaded Union is a specialized piping component designed for quick and secure disconnection and reconnection of pipes. This union features female National Pipe Taper (NPT) threads on both ends, facilitating seamless integration with male-threaded pipe sections. It is primarily used to simplify the installation, maintenance, and inspection processes in complex piping systems.

Steel tee is a T-shaped pipe fitting with three branch pipes. It is used to divide pipes to adjust flow and change direction.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ – 4″ / DN6 – DN100

Shapes:

Concentric: Concentric swage nipple is mainly used for vertical pipeline.

Eccentric: eccentric swage nipple is mainly used in horizontal pipelines.

2in threaded tee used thread connection to connect with pipes to branch the pipe system.ASTM A105 forged fittings are carbon steel fittings.Pipe tees can be equal tee and reducing tee.These tees have same functions,the only difference is reducing tee can reduce the flow in piping system.

The threaded pipe union is similar to the coupling and can be flexibly disassembled when it needs to be repaired or replaced. The reducing threaded union is easy to disconnect and link, and can be operated multiple times.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

3000LB threaded couplings have the most widely using range.ASTM A105 forged fittings is carbon steel fittings belong to American Standard.Threaded couplings have two types:Half and Full.The other pressures could be chosen:#2000,#6000.

Threaded Union used in different industries applications like chemical processing, oil refineries, petrochemical and many other industries.Our offered Threaded Union Fitting is Stocked for Immediate Shipment.We are also supplier of Threaded Dielectric Union which breaks the electrical path with a plastic liner between its halves, limiting galvanic corrosion.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ – 4″ / DN6 – DN100
Materal: Stainless Steel, Alloy Steel and Carbon Steel

High pressure forged steel tee is used for providing branch, it can be divided into equal tee and reducing tee.High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

A234 WPB threaded coupling mainly consists of a main body and thread structures at both ends. The main body is usually cylindrical, and its length varies according to different specifications and usage requirements.

This is a Pipe fitting with the same size on three sides. It is used to change the direction of the pipe so that the pipe is 90 degrees perpendicular to the pipe.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

A threaded bushing, also known as a threaded insert, is a fastener element that is inserted into an object to add a threaded hole. Bushing Threaded Types: NPT  PT  BSPP  BSPT  PF.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ –  4″ / DN6 – DN100

What is aHex Nipple and what about its specification and advantages.

Bending radius less than or equal to 1.5 times of pipe diameter belongs to elbow, and bending radius greater than 1.5 times of pipe diameter belongs to elbow

The main pipe of these tee is different from the diameter of the branch pipe, and the diameter of the main pipe is larger than that of the branch pipe.

BS3799 F304 Threaded Pipe Fittings are named by its manufacturing forging process and produced according to ASME B16.11, MSS-SP-79\83\95\97 and BS3799 standards.

The body of the branch abutment is made of high-quality forgings, which are made of the same materials as the pipes, including carbon steel, alloy steel, stainless steel, etc. The branch pipe seat and the main pipe are welded

Threadolet considered to a threaded fitting, and it is manufactured in 3000 and 6000 classes. t typically is in the size range of 1/2″ to 2” and is welded over a hole either drilled or burned in the pipe.
