Socket welding coupling Full half ASTM 105N

What is a SW 45 degree elbow fittings ,and its specification and advantage.

What is a SOCKET WELD-90 DEGREE ELBOW,what about its speicification and advantage

Equal  Elbow

Equal elbow is an elbow with the same diameter at both ends, which is characterized in that the pipeline connecting the two necks belongs to the same specification.

Reducing  Elbow

Reducing elbows connect two pipes of different diameters to reduce the diameter when the pipe rotates.

Forged socket weld elbow is available in 90 degree and 45 degree that used to connect the ASME pipe to fittings or valves by fillet seal welding. It has varieties of features such as reliability, durability and dimensional precision.

What is a socket weld elbow and why do socket welders need a gap?

Carbon steel pipe fittings are used in many applications because of its great excellent functions.Carbon steel pipe fittings can manufactured as THD (threaded) fittings,SW (socket weld) fittings and (BW) butt welded fittings.The specifications are in the content below.

5in SW elbow is used to socketed with pipes and then welded on pipes.ASME B16.11 pipe fittings mean forged pipe fittings.Forged pipe fittings can be divided in socket weld fittings and threaded fittings.

Carbon Steel: ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

Features of Pipe cross:

Socket Weld Coupling material can be divided into carbon steel, alloy steel and stainless-steel.
Socket welding Pipe fittings are available in pressure ratings Class 3000, 6000, and 9000.
There are various types of  socket-welding Tube fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet

Socket Weld Fittings Specification
Shape: Elbow, Tee, Cross, Coupling, Union, Cap, Reducing Insert, Sockolet
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 3000lbs, 6000lbs, 9000lbs
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

90 deg socket weld elbows are belong to ASME B16.11 stainless steel pipe fittings.SW elbows have two types:90 DEG and 45 DEG.SW pipe fittings including:Elbow, Tee, Cross, Coupling, Union, Cap, Reducing Insert, Sockolet.Three pressures for customers to choose:3000LB,6000LB,9000LB.

5IN socket welded coupling is a commonly used forged fitting in piping systems.ASME B16.11 pipe fittings are forged pipe fittings including SW fittings and THD fittings.Socket welded coupling can socketed with the pipes and then welded on pipes.

What is a SW fiting and how about a SW Elbows’ specification?

Stainless steel pipe fittings including Tee,Cross, Elbow, Reducer, Coupling, Nipple, Plug & Cap,Union.They can be connected with pipes by welding, socket and thread.

SW tee can socketed with the pipes and welding with the pipes.ASME B16.11 fittings are forged fittings according to American Standard.Tees can be equal tee and reducing tee.These tees have same functions,the only difference is reducing tee can reduce the flow in piping system.

Socket Weld half Coupling is a coupling with a socket weld only at one end, It is usually welded directly to the pipeline to form a branch connection. Coupling for joining a pipe to another of smaller diameter. Straight coupling connects two pipes end-to-end. It is used to supplement the infinite aluminum pipe.

Socket Weld 90 Elbow is planned for wide utilize totally different industries like oil refineries, chemical processing, petrochemical, and numerous other businesses.

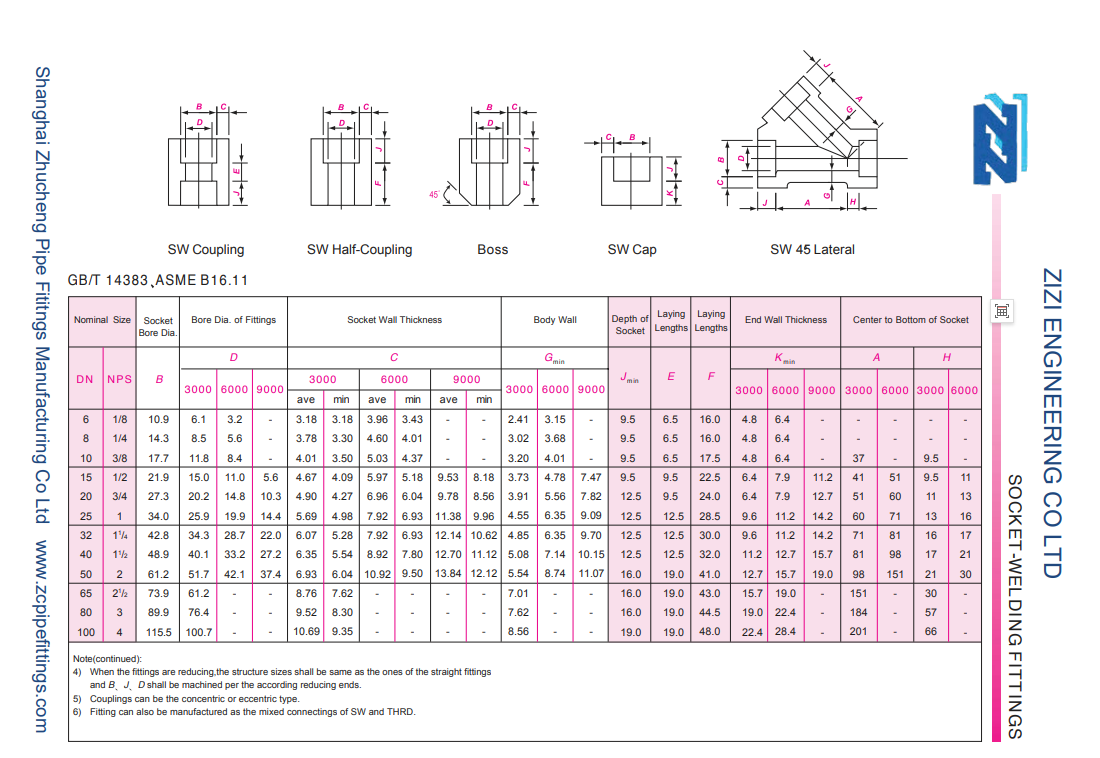

ASME B16.11 is the standard contains ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded. Threaded fittings are available in pressure ratings Class 2000, 3000, and 6000; Socket welding fittings are available in pressure ratings Class 3000, 6000, and 9000.

Socket weld 45 deg lateral tees are belong to pipe tees,but is a special type of pipe tees.These lateral tees could change the direction in 45 degree of the pipes.

SW half coupling is a type of socket weld coupling,the other type is full coupling.ASTM A182 F304 forged fittings are stinless steel pipe fittings used in many corrosive environments.Stainless steel pipe fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

A Socket Weld Fittings is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Once correctly inserted, fillet type sealing welds are applied to join the pipe to the fitting.

ASTM A182 F316 is a popular grade for stainless steel in American Standard.Stainless steel fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

What is a Socket weld Uninon,what about its speicification and advantage

ASME B16.11 forged fittings are popular because of the famous American Standard and the variety products.Socket weld (SW) fittings and threaded (THD) fittings are both forged fittings.Stainless steel pipe fittings are always chosen in corrosive and chemical environments.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.
