Pipe Fittings Manufacturer Swage Nipple

A combination of pipe nipples are recommended for low-pressure discharge and suction service for various compatible liquids and not for compressible products like air, nitrogen or steam.

Steel pipe elbow can be divided into 3 types as buttweld, threaded, socket weld in accordance with connection.Threaded elbow is more convenient compare with the buttweld and socket weld elbow.

The specification of ASTM A182 Forged Pipe Fittings includes forged fittings, stainless steel, rolled alloy, forged alloy, pipe flanges as well as high-temperature service. Later then forgings and hot working, it would be cooled down to a certain temperature before heat treatment.

BS3799 F304 Threaded Pipe Fittings are named by its manufacturing forging process and produced according to ASME B16.11, MSS-SP-79\83\95\97 and BS3799 standards.

Socket Weld Half Couplings is utilised in various applications in order to provide a torque free sealing and a leak free connection. Socket weld coupling is a very short section of pipes with socket bore at both ends or one end, but both can afford high pressure of 3000#, 6000#, 9000#. The Socket Weld Half Coupling are often directly welded to the run pipe, to form a branch connection.

Equal tees are available in sizes from half an inch to 48 inches (or larger) and in seamless and welded execution (seamless up to 24 inches, welded for tee sizes above 24 inches).

Shapes:
Equal：This is a Pipe fitting with the same size on three sides.
Reducing：The main pipe of these tee is different from the diameter of the branch pipe, and the diameter of the main pipe is larger than that of the branch pipe.

Forged threaded elbows are very common in chemical, oil refining, petrochemical and other industries, and are also used in some other industries.

Stainless steel 90 deg threaded elbow is popular because it is easy to install or replace.ASME B16.11 forged fittings are pipe fittings according to American Standard.There are many types fot customers to choose:NPT PT BSPP BSPT PF.

What is a threaded tee,what about its specification and its difference between a elbow.

Carbon Steel ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

The overall shape of the A105N hex head plug is a combination of a hexagonal head and a plug body. The hexagonal head design is convenient for operation with tools such as wrenches, and can provide better torque transmission, so that the tube plug can be tightened or loosened.

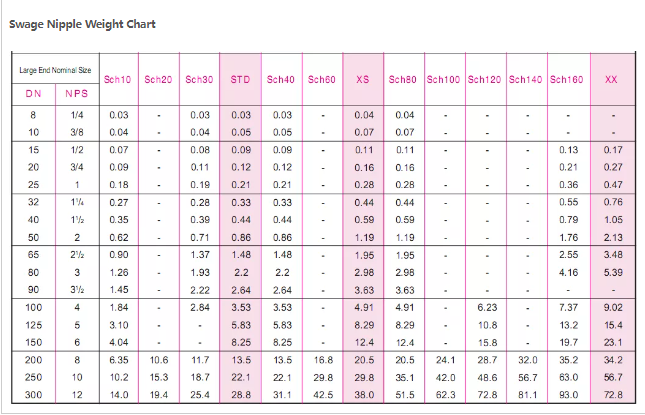

A swage nipple is something similar to that of a reducer but it is used to join the butt welded pipe with a socket welded or screwed pipe.Like the reducer,swage nipple is also available with two variations:concentric swage nipple and eccentric swage nipple.The swage nipple generally adopts the MSS SP-95 or the BS3799 Standard.

What is a Threaded nipple and what about its specification and advantages.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet; while ASME B16.11 threaded fittings can be furnished in product forms of Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, plug and bushing.

TOE means threaded at one end when translated. Thus, we can say that a nipple TOE is a nipple that has one threaded end.
In this case, we have the acronym TBE for “threaded both ends” which means threaded at both ends. In other words, this is the most typical type of nipple as described above for connecting two parts or fittings with female threading.

High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

The weld groove of the branch abutment is a single-sided V-shaped groove. It can be determined that the weld is a combination of butt weld (groove weld) and fillet weld.

BSP Pipe Fittings Specification
Type: Elbow /Tee /Cross /Coupling /Cap/Union /Nipple /Plug /Bushing
Material: CS/LOW TEMP CS/PIPELINE STEEL/ALLOY STEEL /SS/ DUPLEX SS
Standard: ASME B16.11, BS3799
Size: 1/8IN-4IN/DN6-DN10
Rating: 2000lbs,3000lbs,6000lbs

Half Coupling: One end of a half thread coupling is threaded and the other end is welded. Straight: It is a kind of pipe coupling with the same diameter at both ends. Reducing: The two ends of the coupling have different sizes

 NPT A105 bushing is mainly used to connect two pipes of different diameters in the pipeline system or to correct the error in the pipeline installation. It is usually made of A105 carbon steel, has high strength and good corrosion resistance, and can withstand high working pressure.

SS316L Threaded Pipe fittings provide permanent welded connections for pipes. Threaded Steel Coupling is a short piece with screw in NPT or BSP ends or one end.

Concentric swage nipple is mainly used for vertical pipeline. eccentric swage nipple is mainly used in horizontal pipelines.

What is a threaded elbow,what about its specification and its advantages.

Class 3000 hex head plugs are used in the end of piping systems or equipments to achieve close function.ASTM A182 F304 forged pipe fittings are the most common used stainless steel pipe fittings because of the reasonable price and superior functions.Threaded plugs have 3000lb and 6000lb pressures for customers to choose.

What is a THD Uninon,what about its speicification and advantage
