NPS 1/8” – 4” Hexagon plug ASTM A105/105N cl3000

Socket Weld half Coupling is a coupling with a socket weld only at one end, It is usually welded directly to the pipeline to form a branch connection. Coupling for joining a pipe to another of smaller diameter. Straight coupling connects two pipes end-to-end. It is used to supplement the infinite aluminum pipe.

Swage Nipple are similar to reducers, but they’re smaller, and they’re used to link larger screwed, or socket welded pipes to smaller screwed or socket welded pipes. They come in concentric and eccentric varieties, just like reducers. Swages come in a variety of end

Threaded couplings could be divide into full coupling (both ends threaded) and half coupling(one end threaded,the other end welded).Forged pipe fittings dimensions are all in small size,1/8″-4″.

ASTM A105 Threaded Pipe Fittings are used for installing or repairing piping or tubing systems that convey liquid, gas, and occasionally solid materials. SA 105 fittings comes in a variety of sizes to fit the pipe they will connect. It is useful to combine, divert or reduce the flow of the water supply.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF

What is a threaded tee,what about its specification and its difference between a elbow.

Flush Bushing: Flush bushing are used in piping systems. They are installed in the pipe to reduce the size of the pipe. Hex Head Bushing: A hex bushing is a threaded fitting with a hex head used to tighten the fitting into a threaded opening.

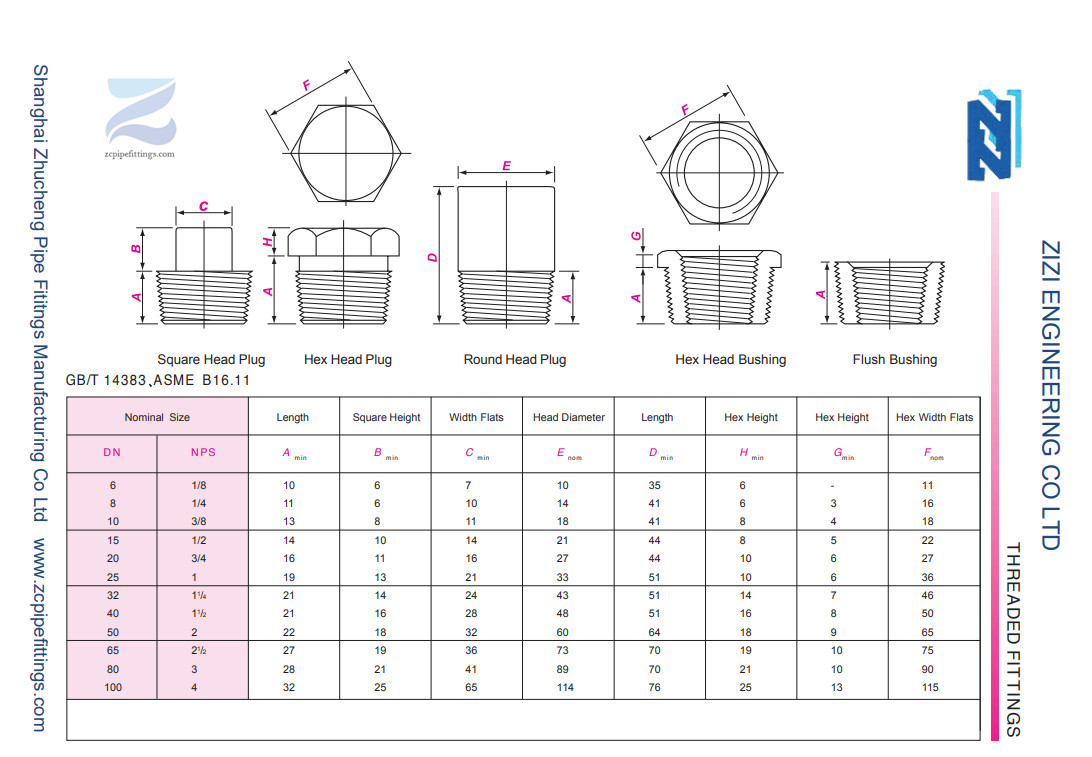

The overall shape of the A105N hex head plug is a combination of a hexagonal head and a plug body. The hexagonal head design is convenient for operation with tools such as wrenches, and can provide better torque transmission, so that the tube plug can be tightened or loosened.

These Stainless Steel A182 Threaded Union are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

Swaging nipples is divided into tubing sub and casing sub. Flanging nipple in pipe connection is commonly used with flange. Diameter pipe (reducing nipple) is a pipe fitting used for straight connection of two pipes with different sizes to realize pipe diameter reduction. There are concentric reducing joints and eccentric reducing joints

Threaded elbow material and size
type: 90 degree and 45 degree elbow
Shape: straight and reducing elbow
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8”-4”/DN6-DN100
Pressure Rating: Class 2000LBS, 3000LBS, 6000LBS
Standard: ASME B16.11, BS3799
Carbon Steel: ASTM A105/A105N
Low Temp Carbon Steel: ASTM A350 LF2/LF3
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 310S, 317, 347, 904L, 321

ASTM A106 SCH160 threaded nipples are carbon steel pipe fittings that have widely used range.There are two shapes for choose:TOE(threaded one end) and TBE (Threaded both ends).

Weldolet, an economical butt-weld branch connection, is designed to minimize stress concentrations and provide integral reinforcement. manufactured to meet your specific reinforcement requirements.

Bending radius less than or equal to 1.5 times of pipe diameter belongs to elbow, and bending radius greater than 1.5 times of pipe diameter belongs to elbow

ASTM A182 F316 is a popular grade for stainless steel in American Standard.Stainless steel fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

Swage Nipple and short joint reducing joint are pipe fittings used for straight-line connection of two pipes with different sizes to realize pipe diameter reduction. There are concentric reducing joint and eccentric reducing joint

What is a THD Uninon,what about its speicification and advantage

Threaded elbow can reduce pipeline stress and pressure drop reduce pipeline stress, reduce pipeline pressure drop, and reduce pulsating power of fluid to pipeline.

The equal cross is one kind of the pipe cross,  the equal cross means all the 4 ends of the cross are in same diameter.
The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

Socket Weld Half Couplings is utilised in various applications in order to provide a torque free sealing and a leak free connection. Socket weld coupling is a very short section of pipes with socket bore at both ends or one end, but both can afford high pressure of 3000#, 6000#, 9000#. The Socket Weld Half Coupling are often directly welded to the run pipe, to form a branch connection.

What is a Threaded Coupling,what about its specification and its advantages.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ – 4″ / DN6 – DN100
Materal: Stainless Steel, Alloy Steel and Carbon Steel

CL3000 threaded couplings are the most used pressure of couplings,there are still CL2000 and CL6000 to choose.ASTM A105 forged pipe fittings are usually be chosen because of the affordable price and great functions.

Reducing pipe (reducing nipple) is a pipe fitting used for straight-line connection of two pipes with different sizes to realize pipe diameter reduction. There are concentric reducing joints and eccentric reducing joints
