MS Pipe Fitting Insulation Butt Weld Concertric Reducer Sizes

Concentric reducer is used to join pipe sections or tube sections on the same axis. It is cone-shaped, and is used when there is a shift in diameter between pipes. A pipe reducer is available in various specifications, such as a single diameter change and also in a multiple diameter change.

The elbow radius mean curvature radius. If the radius is the same as pipe diameter, it called short radius elbow, also called SR elbow, normally for low pressure and low speed pipelines. If the radius is larger than pipe diameter, R ≥ 1.5 Diameter, then we call it a long radius elbow (LR Elbow), applied for high pressure and high flow rate pipelines.

ASME B16.9 45 degree LR elbow is a pipe connector with a bending angle of 45 degrees. The long diameter means that the bending radius of the elbow is relatively large. It consists of a bending part and interfaces at both ends. The size of the interface matches the outer diameter of the connected pipe to ensure a sealed connection.

Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and are available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.

What is a Butt weld TEE and what about its difference between reducing tee .

Carbon steel reducer is a commonly used BW fitting.Butt welded pipe fittings used welded connection to connect with pipes in piping systems.These BW fittings are popular because of the strong and permanent connection.Carbon steel is the most used material in many applications because of the great functions and affordable price.

DN900 LR elbow is large dimension fitting,for the large dimension,the elbows always be butt welded.Wall thickness STD is a commonly used thickness of BW fittings,the other commonly used wall thickness are SCH 40, SCH 80.

Reducing tee is used to change the direction and reduce the flow of the fluids or gas.Butt welded pipe fittings can weld with the pipes so that can anti leakage effectively.Tees have two types:Equal Tee and Reducing Tee.The commonly used wall thicknesses for butt welded fittings are SCH STD,SCH 80,SCH 160.

A234 WPB tee is a pipe fitting used in pipeline systems. It has three openings and can divide the fluid in one pipe to the other two pipes, or gather the fluid in two pipes into one pipe. Carbon steel tees can be divided into equal diameter tees and reducing tees.

Steel pipe bend is belong to butt welded fittings,bends have some similar usages as elbows.However,bends can be customized by clients to satisfy different demands.Schedule 80 is represents to the wall thickness of BW fittings.The most used wall thicknesses of butt welded fittings are SCH 40,SCH 80.

Equal BW tee is a commonly used fittings in butt welded fittings.ASTM A234 WPB WPC are both grades for carbon steel fittings.Pipe tees can be equal tee and reducing tee.These tees have same functions,the only difference is reducing tee can reduce the flow in piping system.

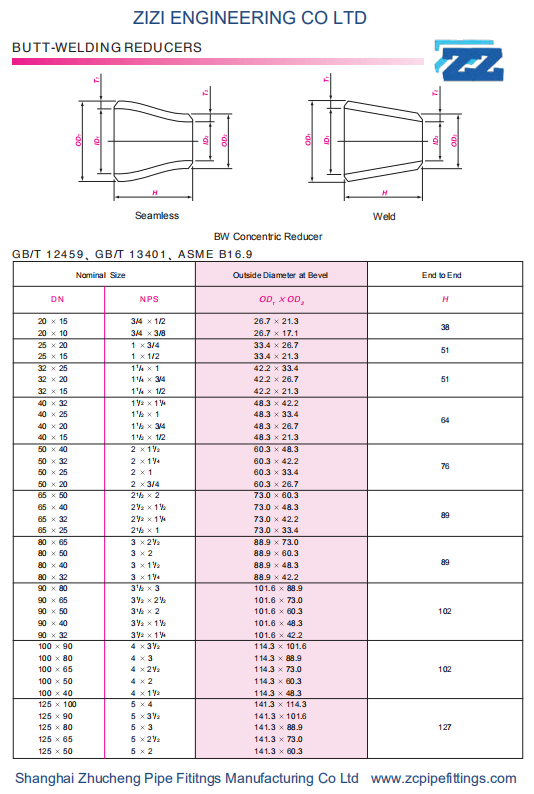

Concentric reducer is used to join pipe sections or tube sections on the same axis. It is cone-shaped, and is used when there is a shift in diameter between pipes. A pipe reducer is available in various specifications, such as a single diameter change and also in a multiple diameter change.

Carbon steel tee is a commonly used tpye of tees.This is butt welded (BW) carbon steel tee in the picture.it can welded with pipes to achieve permanent connection.Equal tee only can change the direction of the pipes while reducing tee can also reduce the flow of the fluids or gas.

24IN carbon steel BW elbows are large dimension fittings,ASME B16.9 is represents butt welded fittings in American Standard.Carbon steel fittings are used in many applications because of its great excellent functions.

BW (butt welded) reducer can be concentric (COC) reducer and eccentric (EEC) reducer.Among these two types,concentric reducer is more commonly used.The materical of reducer can be carbon steel,alloy steel and stainless steel.Clients can choose different material as their demands.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

SS400 90 DEG elbow is used to transport flow in piping system.Butt welded fittings used welded connection to connect with the pipes to achieve the strong and premanent connection.

Concentric reducer’s dimnesions and its usage and advantage

According to its radius of curvature, it can be divided into long radius elbow and short radius elbow. Long radius elbow means that its radius of curvature is equal to 1.5 times the outer diameter of the pipe, that is, r = 1.5D. Short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, r = 1.0d.

The characteristic of concentric reducers is that their center lines coincide, that is, the centers of the large and small heads are on the same straight line. This design allows the flow direction of the fluid to remain basically unchanged when passing through the reducer, reducing the resistance caused by the change in flow direction.

Pipe Elbow is installed between two long pipes for changing the direction of the flow of liquid or fluid. These are commonly available in two types; 90 degrees and 45 degrees. Its function is to change the direction of the fluid by 90 degrees, so it is also called vertical elbow.

Long radius elbow refers to the pipe outer diameter with radius of curvature equal to 1.5 times, i.e R = 1.5D. Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.

BW tees and reducers are the most used pipe fittings in the piping system.Tees can branch the flow in piping systems.Carbon steel pipe fittings are popular as the great functions and affordable functions.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

BW equal tee is always used in piping system to branch the pipes.ASME B16.9 Pipe Fittings are butt welded fittings in American Standard.Pipe tees can be equal tee and reducing tee.These tees have same functions,the only difference is reducing tee can reduce the flow in piping system.

ASTM A182 F304 pipe fittings are inculding many fittings,among these,stainless butt welded elbows are the most common used fittings.For 90 deg elbows,there are two types :LR (Long Radius) and SR (Short Radius).Stainless steel pipe fittings are popular because of the superior functions.
