High Pressure Pipe Fitting Accessories Threaded Elbow

Swage nipples are often used in small diameter pipe systems, and are similar to pipes. It is used to allow plumbing to be connected to a water heater or other plumbing.

Carbon Steel ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

Swage Nipple and short joint reducing joint are pipe fittings used for straight-line connection of two pipes with different sizes to realize pipe diameter reduction. There are concentric reducing joint and eccentric reducing joint

Threaded union is easy to install and disassemble so that it is popular in piping system.Threaded fitting used thread type to connect with pipes,threaded fittings have many pressures:2000,3000,6000.

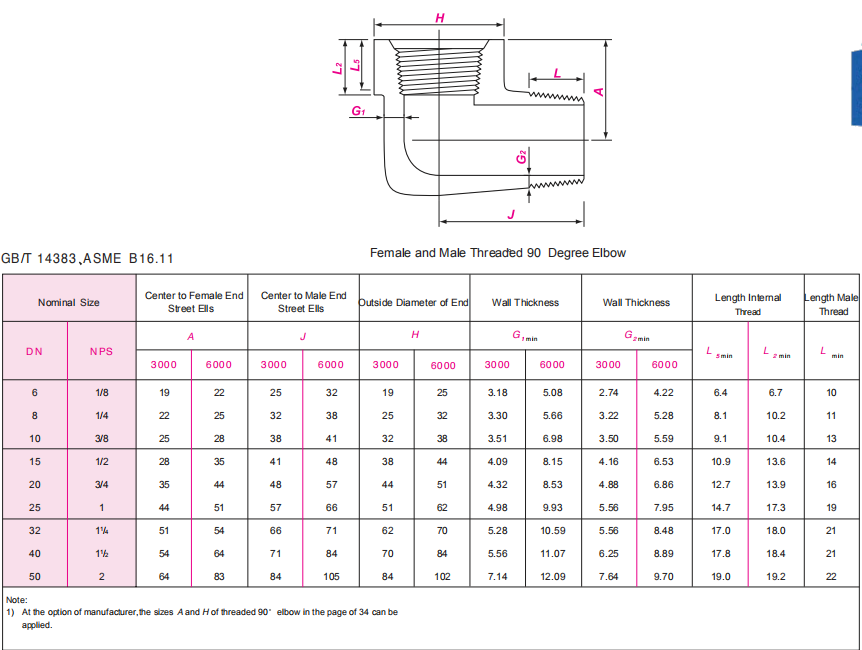

Threaded elbow used thread connection to connect with the pipes.Pipe elbows have three types:THD (threaded),SW (socket weld),BW (butt welded).These elbows used different connections to connect with the pipes in piping system.Class 3000 forged fittings are the most used high pressure fittings.

A234 WPB threaded coupling mainly consists of a main body and thread structures at both ends. The main body is usually cylindrical, and its length varies according to different specifications and usage requirements.

Used for all sorts of media: chemical substances, petrochemical products, liquefied gas – especially in loading/unloading applications. There are also couplings intended for highly aggressive chemical substances, lined with ECTFE – a polymer resistant to chemicals.

These Stainless Steel Pipe Fittings are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

The branch pipe stand is also called branch pipe seat, saddle and saddle type pipe joint. Reinforced pipe fittings mainly used for branch pipe connection, instead of branch pipe connection such as reducing tee, reinforcing plate and reinforced pipe section

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

Half Coupling: One end of a half thread coupling is threaded and the other end is welded. Straight: It is a kind of pipe coupling with the same diameter at both ends. Reducing: The two ends of the coupling have different sizes

High pressure forged steel tee is used for providing branch, it can be divided into equal tee and reducing tee.High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

t is similar to the blind plate in form, but the blind plate can be moved and removed, while the pipe cap cannot be removed.

hat is a threaded tee,what about its specification and its difference between a elbow.

What is a THD Uninon,what about its speicification and advantage

The base of the threaded branch pipe stand is the same as that of the butt welded branch pipe stand, but its branch connection is screw connection, which does not require welding. The threaded branch pipe has two pressure classes, 3000 # and 6000 #.

Carbon steel threaded tee is a pipe connector made of carbon steel material, with three threaded interfaces, used to connect three pipes, one of which is used as a branch port. It realizes the medium diversion in the pipeline system and ensures the normal operation of the pipeline system.

Class 3000 threaded union is the most used pressure of threaded union.ASME B16.11 is the standard for forged fittings according to American Standard.

Pipe Swage Nipple (also known as reducing nipple) is divided into tubing sub and casing sub. Flanging nipple in pipe connection is commonly used with flange.

ASTM A182 F304 Threaded Union is a specialized piping component designed for quick and secure disconnection and reconnection of pipes. This union features female National Pipe Taper (NPT) threads on both ends, facilitating seamless integration with male-threaded pipe sections. It is primarily used to simplify the installation, maintenance, and inspection processes in complex piping systems.

The equal cross is one kind of the pipe cross,  the equal cross means all the 4 ends of the cross are in same diameter.
The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

The equal cross is one kind of the pipe cross,  the equal cross means all the 4 ends of the cross are in same diameter.
The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

Shanghai Zhucheng is well known manufacturer of MSS SP-83 Union, consists of three parts: a nut, a female end and a male end. Our offered Threaded Pipe Union similar to a coupling, allows the convenient future disconnection of pipes for maintenance or fixture replacement. Threaded Reducing Union makes easy connection and disconnection, multiple times whenever we need.

Threaded couplings could be divide into full coupling (both ends threaded) and half coupling(one end threaded,the other end welded).Forged pipe fittings dimensions are all in small size,1/8″-4″.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Range: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

We are the manufacturer of High Pressure Steel Pipe Fittings for China. Pipe Coupling contains Socked Coupling and Threaded Coupling.

CL3000 threaded couplings are the most used pressure of couplings,there are still CL2000 and CL6000 to choose.ASTM A105 forged pipe fittings are usually be chosen because of the affordable price and great functions.

Threadolet considered to a threaded fitting, and it is manufactured in 3000 and 6000 classes.
