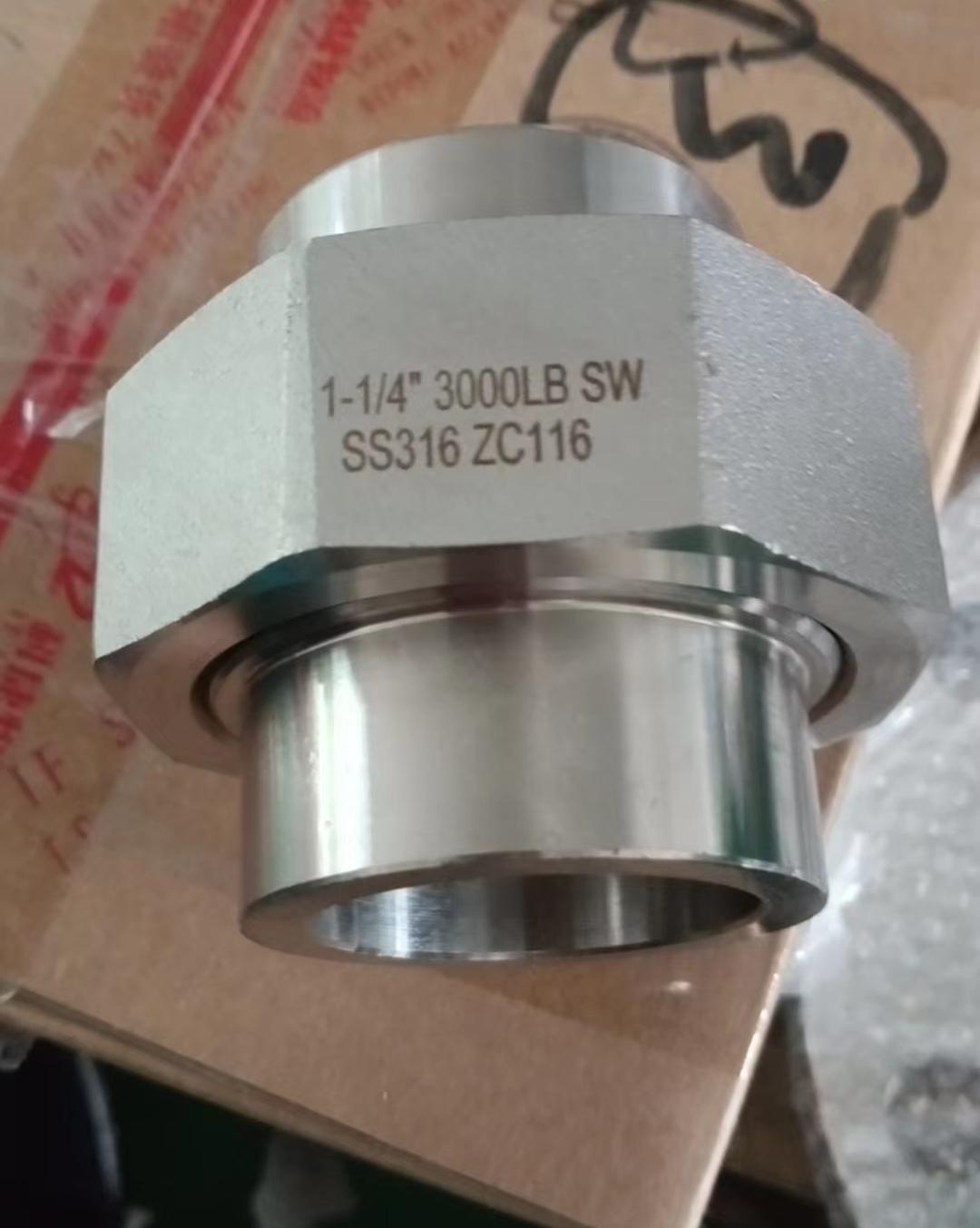

Class 3000 socket weld union
Socket weld union,is a pipe connector connected by socket welding. Socket weld union mainly consists of a socket, a socket and a socket slot. It is characterized in that there is a socket slot on the socket, and the socket and the socket are located at both ends.
Socket weld union,is a pipe connector connected by socket welding. Socket weld union mainly consists of a socket, a socket and a socket slot. It is characterized in that there is a socket slot on the socket, and the socket and the socket are located at both ends. This structure allows the steel pipe to be easily inserted into the socket hole for welding, thereby realizing the connection of the pipeline.
Socket weld union can be widely used in pipeline systems of different diameters, including but not limited to water supply, drainage, gas, heat and other pipelines. Due to its excellent performance and wide range of applications, socket union has a very high market prospect in pipeline engineering.
Socket Weld Union Material
| Carbon Steel | ASTM A105 / A105N |
| Low Temp Carbon Steel | ASTM A350 LF2 / LF3 |
| Pipeline Steel | ASTM A694 F42 / F46 / F56 / F60 / F65 |
| Alloy Steel | ASTM A182 F11 / F12 / F5 / F9 / F91 / F92 / F22 |
| Stainless Steel | ASTM A182 F304/304L/304H, F316/316L, F310S, F317, F347, F904, F321 |
| Duplex Stainless Steel | ASTM A182 F51, F53, F44, F55 |

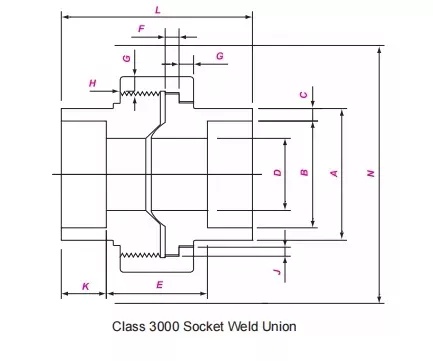

Dimension and weight of Socket Weld Union
CLASS 300 Socket Weld Union
| DN | NPS | A | B | C | D | E | F | G | H | J | K | L | N |
| 6 | 1/8 | 21.8 | 10.9 | 3.2 | 6.1 | 20.7 | 3.2 | 3.2 | 16 | 1.2 | 9.7 | 41.4 | 51 |
| 8 | 1/4 | 21.8 | 14.3 | 3.3 | 8.5 | 20.7 | 3.2 | 3.2 | 16 | 1.2 | 9.7 | 41.4 | 51 |
| 10 | 3/8 | 25.9 | 17.7 | 3.5 | 11.8 | 23.8 | 3.4 | 3.4 | 14 | 1.4 | 9.7 | 46 | 56 |
| 15 | 3/4 | 31.2 | 21.9 | 4.1 | 15 | 23.8 | 3.7 | 3.7 | 14 | 1.5 | 9.7 | 49 | 59 |
| 20 | 1/2 | 37.1 | 27.3 | 4.3 | 20.2 | 28.6 | 4.1 | 4.1 | 11 | 1.7 | 12.7 | 56.9 | 66 |
| 25 | 1 | 45.5 | 34 | 5 | 25.9 | 30.2 | 4.6 | 4.4 | 11 | 1.9 | 12.7 | 62 | 79 |
| 32 | 1-1/4 | 54.9 | 42.8 | 5.3 | 34.3 | 36.6 | 5.3 | 5.2 | 10 | 2.1 | 12.7 | 71.1 | 94 |
| 40 | 1-1/2 | 61.5 | 48.9 | 5.5 | 40.1 | 38.1 | 5.8 | 5.6 | 10 | 2.3 | 12.7 | 76.5 | 112 |
| 50 | 2 | 75.2 | 61.2 | 6 | 51.7 | 41.4 | 6.6 | 6.4 | 10 | 2.7 | 15.7 | 86.1 | 132 |
| 65 | 2-1/2 | 91.7 | 73.9 | 7.7 | 61.2 | 56.9 | 7.5 | 7.1 | 8 | 3.1 | 15.7 | 102.4 | 150 |
| 80 | 3 | 109.2 | 89.9 | 8.3 | 76.4 | 58.7 | 8.3 | 8 | 8 | 3.5 | 15.7 | 109 | 176 |
Class 3000 Socket Weld Union Weight Chart in KG
| DN | NPS | 3000 |
| 6 | 1/8 | 0.25 |
| 8 | 1/4 | 0.30 |
| 10 | 3/8 | 0.35 |
| 15 | 1/2 | 0.46 |
| 20 | 3/4 | 0.61 |
| 25 | 1 | 0.85 |
| 32 | 1-1/4 | 1.35 |
| 40 | 1-1/2 | 1.92 |
| 50 | 2 | 2.85 |
| 65 | 2-1/2 | 4.90 |
| 80 | 3 | 7.10 |
Application of Socket Weld Union
Water supply and drainage system: in the urban water supply and drainage system, socket weld union is used to connect pipes, valves, water meters and other equipment to ensure the unimpeded water flow. Its welding method makes the connection firm, not easy to leak, is very suitable for use in the need to bear a certain pressure and flow.
Gas system: In gas pipeline,socket weld union also play an important role. Due to the flammable and explosive characteristics of gas appliances, the requirements for pipe connections are extremely high. Through strict manufacturing standards and quality control, the socket weld union ensures its safety and reliability in the gas system.
Petrochemical industry: In the petrochemical industry, the pipeline system is complex and the requirements for the connections are extremely high. Because of its excellent performance and reliable connection mode, socket weld union is widely used in the pipeline system of petroleum, chemical and other industries to connect various media transmission pipelines and equipment.
Industrial manufacturing field: In the industrial production process, the pipeline system is an important part of the material delivery and process control. socket weld union is widely used in pipe systems in various industrial manufacturing fields because of its convenient installation and reliable connection.
