Buttwelding 45 Degree Elbow Asme B16.9 Astm A234 Butt Welding Fittings Supplier Exporters From China

BW equal tee is a commonly used tee in many applications.There is also reducing tees to choose.These tees have same functions,the only difference is the reducing tees can reduce the flow in the pipe system.There are the tee specifications in content below.

45 degree elbows have same functions to 90 degree elbows,the only different is 45 deg elbow changes the direction of pipes in 45 deg while the 90 deg elbow changes the direction in 90 deg.BW pipe fittings are popular as its strong and permanent connection.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

Steel pipe cap is usually welded onto end of pipe that blcok off the piping line system, it has same funtion with plug and blind flange. It is available in material of carbon steel, stainless steel and alloy steel.

LR 90 degree steel pipe elbow are installed between different lengths pipe or tubing, It helps to change direction at 90 degree.

The two ends of concentric reducer are designed with large diameter and small diameter, and the pipe is connected through conical transition section on the same axis.

Pipe elbows have three types:THD (threaded),SW (socket weld),BW (butt welded).These elbows used different connections to connect with the pipes in piping system.Stainless steel fittings are popular because of the an-ti corrosive function.Stainless steel fittings can used over 50 years.

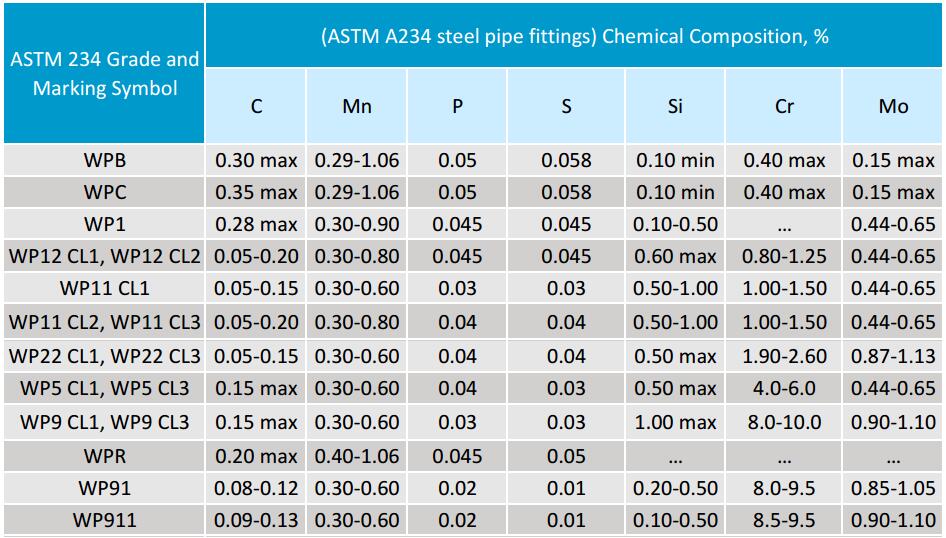

ASTM A234 specification has many grades, such as WPB, WPC, WP5, WP9 WP11, WP12, WP22, WP91 and so on.
In these standard Grade WPB is the most common material used for medium and high temperature pipelines. W means weldable, P means pressure, B is grade b, refer to the minimum yield strength.

The long radius is used most commonly, and it is also the default radius. When it is the place with the high pressure or the high flow rate, the long radius elbow is usually used. If the resistance requirements of the solid transmission pipeline are strict, the larger radius elbows will be used.

A420 WPL6 tee is a pipe fitting with three ports, mainly used to divide a pipe into two branches or merge two branches into one pipe. Common ones are equal diameter tees and reducing tees. In the layout of the pipeline system, the structure of the tee can flexibly change the flow direction of the fluid to achieve the function of branching or merging.

The characteristic of concentric reducers is that their center lines coincide, that is, the centers of the large and small heads are on the same straight line. This design allows the flow direction of the fluid to remain basically unchanged when passing through the reducer, reducing the resistance caused by the change in flow direction.

SR (short radius) elbow is only for 90 deg elbow.SCH XXS is the biggest wall thickness in butt welded fittings.The commonly used wall thicknesses:SCH 40 , SCH 80.The wall thickness more bigger,the bearded pressure of the fittings can be higher.

Welded steel pipes are popular because of the strong and permanent connection,the ends of the pipes can welded with flanges.Slip on (SO) flange can slip on the pipe,and then welded on the pipes.

A234 WPB/WPC BW 90 degree elbows are carbon steel butt welded fittings.Elbows also have 45 degree.These elbows have similar functions,the only difference is the 90 degree elbow can changes the direction in 90 deg while the 45 degree elbow can changes in 45deg.

90 deg SR (short radius) elbow is a type of BW elbows,90 degree elbow also has LR (long radius) type.Shanghai Zhucheng has expericenced pipe fittings factory which can provide high quality pipe fittings and forged flanges.

BW (butt welded) reducer can be concentric (COC) reducer and eccentric (EEC) reducer.Among these two types,concentric reducer is more commonly used.The materical of reducer can be carbon steel,alloy steel and stainless steel.Clients can choose different material as their demands.

BW tee is a commonly used fittings in BW fittings.Tees can also be threaded (THD) and socket welded (SW) tees to used in many different applications.Shanghai Zhuangcheng is an excellent pipe fittings manufacturer who can supply high quality pipe fittings in China.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

ASTM A234 WPB Eccentric Reducers are pipe fittings used to connect two pipes of different diameters, with the centerline of one pipe being offset from the other.

The radius of both the 45 degree and 90 Degree long and short elbow is the same however, the center to face dimension is not equivalent due to the smaller degree of bend.

3/4in BW tee is a normally used fitting in butt welded fittings.A403 WP321 is a grade for stainless steel.Stainless steel pipe fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

BW 180 deg elbow is used to change the direction of pipe system in 180 degree.There are also 90 deg elbow and 45 deg elbow to meet different demands.Carbon and alloy steel are always called “black steel” as the surfer of these steels are black.

Reducing tee a one of the type of tees,the other type is equal tee.these two types tees have similar functions,but the reducing tees can reduce the flow.Shanghai Zhucheng is an excellent Pipe fittings manufacturer who supplys high quality fittings for many years.

Steel pipe elbow is an important parts in plumbing pipeline systems and used to change the fluid directions. It ranges in different types as per body material there are stainless steel elbow, carbon steel elbow, and alloy steel;

BW 90 degree elbow is formed by hot forming and connects steel pipes or other pipe fittings through butt welding process. Its function is to change the direction of the fluid by 90 degrees, so it is also called vertical elbow.

If the radius is the same as pipe diameter (Center-to-Face dimension of 1.0 X diameter ), it called Short Radius Elbow (SR elbow) used normally for low pressure and low speed pipelines or in tight areas where clearance is the main issue. If the radius is larger than pipe diameter (Center-to-Face dimension of 1.5 X diameter) then we call it a Long Radius Elbow (LR Elbow) used for high pressure and high flow rate pipelines.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

Long radius elbow refers to the pipe outer diameter with radius of curvature equal to 1.5 times, i.e R = 1.5D.
Short radius elbow means that its radius of curvature is equal to the outer diameter of the tube, i.e R = 1.0D
