Buttweld Concentric Reducer Buttweld Pipe Fittings

BW equal tee is a commonly used tee in many applications.There is also reducing tees to choose.These tees have same functions,the only difference is the reducing tees can reduce the flow in the pipe system.There are the tee specifications in content below.

90 deg long radius elbow is a commonly used type in elbows.There are aslo 90 degree short radius elbow and 45 degree elbow.Stainless steel pipe fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter. An equal tee is, therefore, used to connect two pipes of the same nominal diameter.

Butt welded elbow is a commonly used pipe fitting,it can divided as two types:90 deg and 45 deg.These elbows have similar functions,the only difference is the 90 degree elbow can changes the direction in 90 deg while the 45 degree elbow can changes in 45deg.These are Shanghai Zhucheng Pipe Fittings Manufacturing Co Ltd’s steel pipe fittings packages to ensure that the products are not damaged during transportation.

Butt weld elbow is a steel elbow formed by hot pressing or forging. Its connection form is to directly weld the elbow and steel pipe. Butt welded elbows are mainly used for elbow with higher pressure and temperature than other connection types. According to the valve body material, it has stainless steel, carbon steel and alloy steel elbow

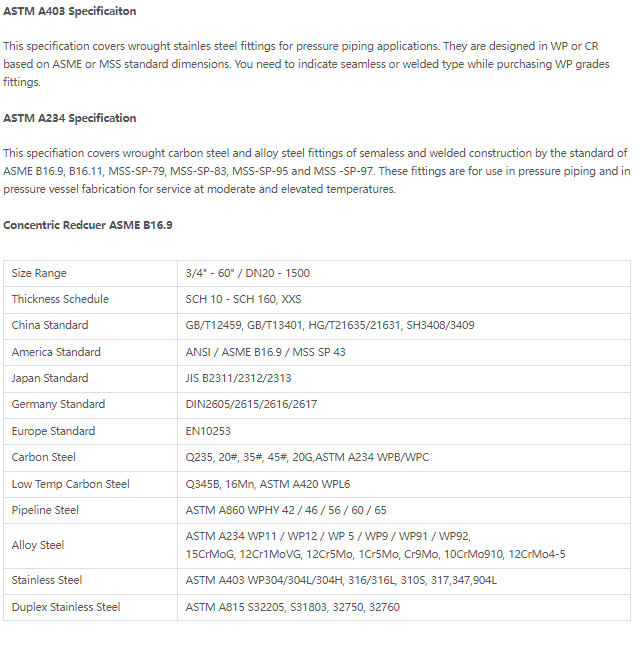

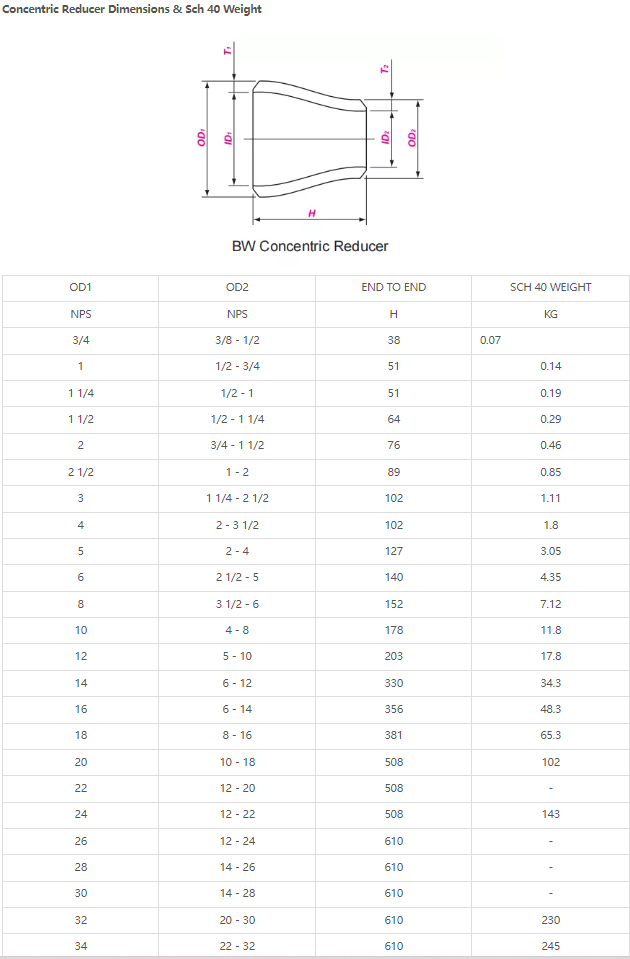

Concentric reducer’s dimnesions and its usage and advantage

ASME B16.9 Stainless Steel Butt Weld Cross Fittings The function of a cross is similar to that of a tee by means of the exception of providing two 90 Deg outlets opposite each other.

45 deg elbow is a type of elbows.These elbows have similar functions to 90 degree elbow,the only difference is the 90 degree elbow can changes the direction in 90 deg while the 45 degree elbow can changes in 45deg.Shanghai Zhucheng is an excellent stainless steel pipe fittings supplier who supplys high quality pipe fittings and flanges for years.

The function of an end cap is to block off the end of a line a piping system, This is achieved by placing the end cap over the open line and welding around the point.

BW elbow is popular because of the strong and permanent connection.The anti corrosion function of carbon steel and alloy steel is not as good as stainless steel,so coated pipes and fittings have paint or oil to protect the fittings during sea transportion.

Clean the steel pipe elbow body and wrap the polyethylene tape on it with adhesive. Usually the thickness of coating is 2mm. They are used in the underground pipeline system. Long radius elbow refers to the pipe outer diameter with radius of curvature equal to 1.5 times, i.e R = 1.5D.

316L 90 deg elbow is a stainless steel pipe fitting which can used in chemical environment because of its an-ti corrosive function.SCH 10S is repersents to the wall thickness in butt welded fittings. Commonly used wall thickness is SCH 40 and SCH 80.Stainless steel pipe fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

A420 WPL6 tee is a pipe fitting with three ports, mainly used to divide a pipe into two branches or merge two branches into one pipe. Common ones are equal diameter tees and reducing tees. In the layout of the pipeline system, the structure of the tee can flexibly change the flow direction of the fluid to achieve the function of branching or merging.

Carbon steel tee is a commonly used tpye of tees.This is butt welded (BW) carbon steel tee in the picture.it can welded with pipes to achieve permanent connection.Equal tee only can change the direction of the pipes while reducing tee can also reduce the flow of the fluids or gas.

Concentric reducers are perfectly suitable to use in the exclusion of the pump. It is cone-shaped, and is used when there is a shift in diameter between pipes. A pipe reducer is available in various specifications, such as a single diameter change and also in a multiple diameter change.

45 degree elbows have same functions to 90 degree elbows,the only different is 45 deg elbow changes the direction of pipes in 45 deg while the 90 deg elbow changes the direction in 90 deg.BW pipe fittings are popular as its strong and permanent connection.

BW (butt welded）reducer has two types:concentric reducer and eccentric reducer.As it is butt welded fitting,its size can be 1/2″ – 80″,so butt welded fittings can be used in many applications.Stainless steel fittings are more expensive but the functions are also better than others.

Specificationo and usage of a 90degree BW elbow.

BW 180 deg elbow is used to change the direction of pipe system in 180 degree.There are also 90 deg elbow and 45 deg elbow to meet different demands.Carbon and alloy steel are always called “black steel” as the surfer of these steels are black.

12 IN Carbon Steel Elbow is an important pipe fitting in piping system as it can change the direction of the pipes in 90 degree.ASTM A234 WPB is a commonly used grade for carbon steel in American Standard.

Butt welded cap is a pipe fitting used to closed the piping systems.BW caps use welding connection to connect with the pipes.SCH 80 is a commonly used wall thickness of BW fittings,the other commonly used wall thickness is SCH 40.

SS 304/316 pipe tees are popular because these tees have excellent corrosion resistance.Tees can made for three types:BW (butt welded) tee,SW (socket weld) tee,THD (threaded) tee.Clients can choose different type of tees to satisfy different demands.ASME B 16.9 is represents butt welded fittings in American Standard.SW fittings and THD fittings are belong to forged fittings which marked as ASME B 16.11.

ASME B16.9 BW 90 elbow is pipe fitting manufactured according to American Standard.ASME B16.9 is American Standard of butt welded fittings.There is BW elbow in the picture,you could find the specification and dimensions below.

Steel pipe elbow is a key parts in a piping system for to change the fluid flow direction. It is used to connect two pipes with same or different nominal diameters, and to make the pipe turn to a certain direction of 45 degree or 90 degree.

Carbon Steel: Q235, 20#, 35#, 45#, 20G,ASTM A234 WPB/WPC
Low Temp Carbon Steel: Q345B, 16Mn, ASTM A420 WPL6
Pipeline Steel: ASTM A860 WPHY 42 / 46 / 56 / 60 / 65
Alloy Steel: ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5
Stainless Steel: ASTM A403 WP304/304L/304H, 316/316L, 310S, 321, 317,347,904L
Duplex Stainless Steel: ASTM A815 S32205, S31803, 32750, 32760

Long radius elbow refers to the pipe outer diameter with radius of curvature equal to 1.5 times, i.e R = 1.5D.
Short radius elbow means that its radius of curvature is equal to the outer diameter of the tube, i.e R = 1.0D

BW elbow types have BW (butt welded),SW (socket weld),THD (threaded).The butt welded elbow is the most used type.Elbows have two shapes:Equal and Reducing.Shanghai Zhucheng is a pipe fittings manufacturer who can supply 45 deg,90 deg and 180 deg elbows.

According to fluid flow direction of the pipes, elbows can be divided into different degrees, such as 45 degree, 90 degree, 180 degree, which are most common elbows. Also there are 60 degree and 120 degree elbows for some special pipelines. This degree is just an representation of the angle by which the fluid flow is going to change after flowing through the said elbow.

The reducing tee has two outlets cut at 90 degrees with the main pipe, and the size of the branch pipe is smaller than the port of the pipeline. It is used for main pipe string accessories, solvent welding accessories, side outlet and conflicting soluble welding accessories
