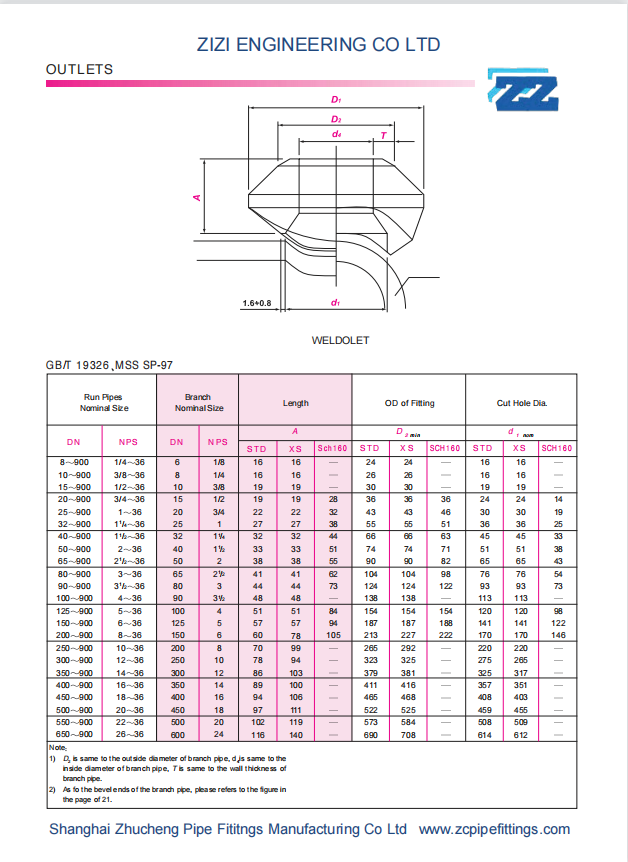

ASTM A105N Weldolet(Butt welding outlet) MSS-SP 97

A105N class 3000 socket weld elbow is belong to ASME B16.11 forged fitting.These elbows can be 45 deg and 90 deg,and they can also be straight or reducing types.

Threaded Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. 90° Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

All flanges are round disks with holes for bolts around the rim, but the commonalities end there. a projecting flat rim used for strengthening or attachment.

An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter. An equal tee is, therefore, used to connect two pipes of the same nominal diameter.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

SS304 90 deg elbow is a stainless steel pipe fitting used to changes the direction of the flow in 90 degree.Threaded steel pipe fittings are a type of forged steel pipe fittings.The other forged fitting is SW pipe fitting.

Threaded fittings are mainly used for small pipe diameters, generally for piping whose nominal diameter is NPS 2 or smaller. Threaded joints probably represent the oldest method of joining piping systems.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet; while ASME B16.11 threaded fittings can be furnished in product forms of Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, plug and bushing.

Socket weld elbow is a forged fitting belongs to SW fittings,SW fittings can be socketed with pipes and then welded with the pipes.SW fittings have serive of pressures:Class 3000,Class 6000,Class 9000.Among these,the most used pressure is Class 3000.

BSP Pipe Fittings Specification
Type: Elbow /Tee /Cross /Coupling /Cap/Union /Nipple /Plug /Bushing
Material: CS/LOW TEMP CS/PIPELINE STEEL/ALLOY STEEL /SS/ DUPLEX SS
Standard: ASME B16.11, BS3799
Size: 1/8IN-4IN/DN6-DN10
Rating: 2000lbs,3000lbs,6000lbs

Threaded nipple is a short piece length of pipe or tube. Its size is specified according to the length of this section of pipe and the diameter. It can be with threaded or flat ends. And both ends can be the same or different.
There are two shape : threaded one end (TOE) and threaded both end ( TBE).

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ – 4″ / DN6 – DN100

Pipe Nipple is a fitting, consisting of a short piece of pipe, usually provided with a male pipe thread at each end, for connecting two other fittings.

Threaded fittings are available in pressure ratings Class 2000, 3000, and 6000; Socket welding fittings are available in pressure ratings Class 3000, 6000, and 9000. Generally, both fittings size range is 1/8″- 4″or DN6-DN100.

What is a SW coupling and what about its size and specification

What is a Socket Weld 90 Degree Elbow,What about its specificaion and advantages.

High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

A swage nipple is something similar to that of a reducer but it is used to join the butt welded pipe with a socket welded or screwed pipe.Like the reducer,swage nipple is also available with two variations:concentric swage nipple and eccentric swage nipple.The swage nipple generally adopts the MSS SP-95 or the BS3799 Standard.

The weld groove of the branch abutment is a single-sided V-shaped groove. It can be determined that the weld is a combination of butt weld (groove weld) and fillet weld.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

SW (socket weld) elbow is high pressure forged fitting which can used in many industries ‘ pipe systems.SW elbows have 90 deg and 45 deg.SW elbows have pressures: 3000LB,6000LB,9000LB.SS304 fittings are always used in chemical industries because of the excellent corrosion resistance.

ASTM A182 F304 Threaded Union is a specialized piping component designed for quick and secure disconnection and reconnection of pipes. This union features female National Pipe Taper (NPT) threads on both ends, facilitating seamless integration with male-threaded pipe sections. It is primarily used to simplify the installation, maintenance, and inspection processes in complex piping systems.

What is a Socket Weld Outlet and what about its specification and advantages.

What is a Socket weld Uninon,what about its speicification and advantage

What is a treaded nipple,what about its specification and its difference between coupling.

ASTM A182 F316 socket weld couplings are used in many industires because stainless steel have a very long using period.SW fittings are belong to ASME B16.11 forged fittings,only can used with small size pipes in ASME Standard.The pressures have #3000,#6000,#9000 to choose.

According to its radius of curvature, there are long radius elbow and short radius elbow. Long radius elbow refers to its radius of curvature is equal to 1.5 times the outside diameter of the pipe, that is, R=1.5D; A short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R= 1.0d.(D is the diameter of the elbow, and R is the radius of curvature).

These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. The connection with the pipe is done with 1 fillet weld, at the outside of the flange. But before welding, a space must be created between flange or fitting and pipe.
