What is a pipe Outlet
The pipe olet is also called the pipe socket, the saddle, and the saddle pipe joint.The main body of the olet is made of high-quality forgings, and the materials are the same as the pipe materials, such as carbon steel, alloy steel and stainless steel. Both the olet and the main pipe are welded, and the connection of the olet or other pipe (such as short pipe, wire plug, etc.), instrument and valve has three types: butt welding connection, socket welding connection and screw connection. Commonly used manufacturing standards for olet stations are MSS SP-97, GB/T19326 and other standards.
Types Of pipe Outlet

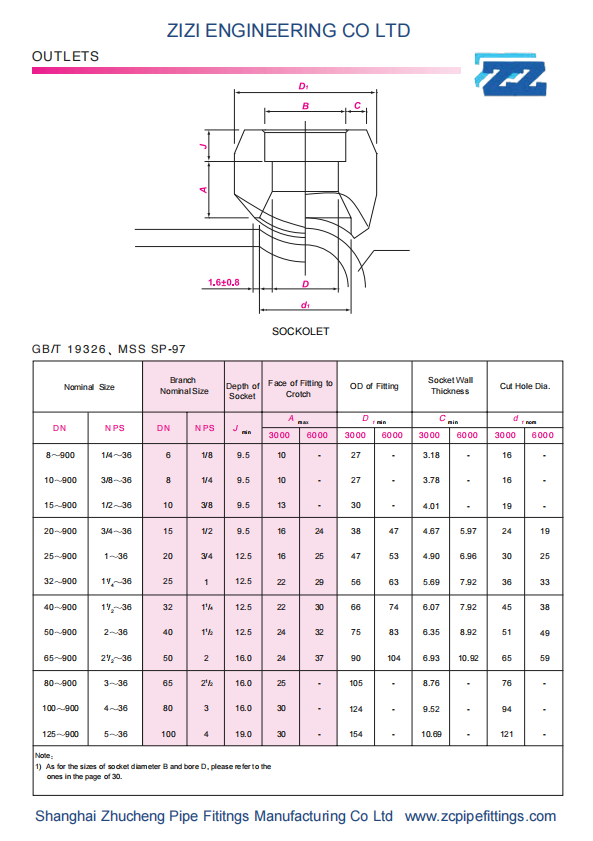

Sockolets: refers to the socket welding pipe table for pipe diameter , see standard MSS-SP-97
Weldolet: refers to the butt welding pipe table for pipe diameter , see standard MSS-SP-97
Threadolet: Threaded pipe stand for pipe diameter , see standard MSS-SP-97
SPECIFICATION Of Socket Weld Outlet
| Size Range | 1/8“-4”/DN6-DN100 |
| Pressure Rating | Class 3000 lbs/6000lbs |
| Standard | Mss sp 97 |
| Carbon Steel | ASTM A105/A105N |
| Low Tem Carbon Steel | ASTM A350 LF2/LF3 |
| Pipeline Steel | ASTM A694 F42/46/50/56/65 |
| Alloy Steel | ASTM A182 F11/12/5/9/91/92/22 |
| Stainless Steel Material | A182 F304/304L/304H F316/316L F317 F310S F321 F347 F904L |
Advantages And Disadvantages
The olet station is widely used in foreign countries in recent years. The reinforcing pipe fittings used for olet connection replace the traditionally used reducer tee, reinforcing plate and reinforced pipe section, etc., which are safe and reliable, reduce the cost; simple construction Improve the medium flow channel; serialization standardization, convenient design and other outstanding advantages, especially in high pressure, high temperature, large diameter, thick wall pipe.
