ASME B16.11 Swage Nipple Carbon Steel Pipe Fittings

Threaded nipple is a short piece length of pipe or tube. Its size is specified according to the length of this section of pipe and the diameter. It can be with threaded or flat ends. And both ends can be the same or different.
There are two shape : threaded one end (TOE) and threaded both end ( TBE).

The socket weld elbow is resistance corrosion/pitting/oxidation/stress corrosion cracking and crevice corrosion

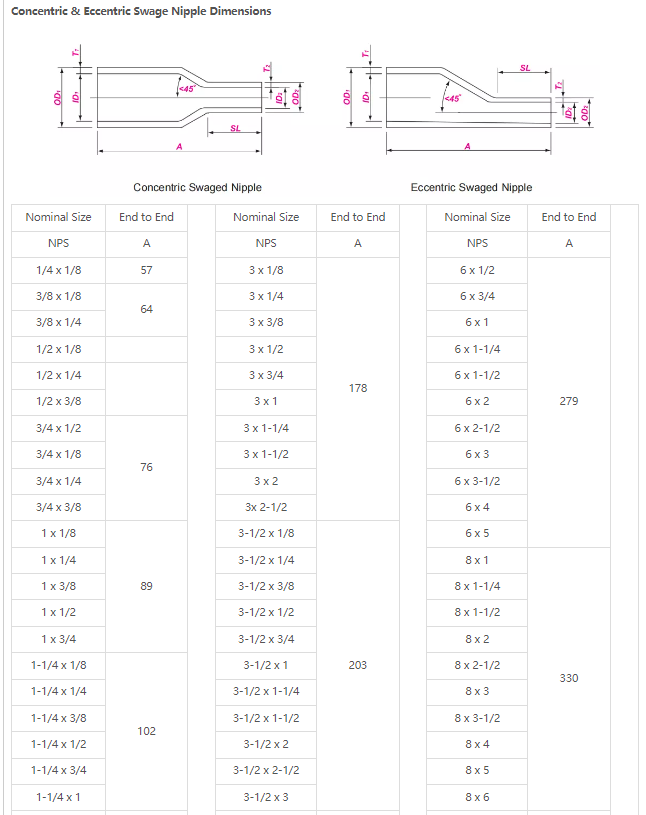

The length of the threaded nipple is usually determined by the total length of the thread. Swaging nipple (also known as reducing nipple) is a forged pipe fitting. It is used to change the diameter of the pipe and connect two pipes of different sizes.

Socket weld flange can socket with the end of pipe,and welding on the pipe.Stainless steel flanges are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

Socket weld cross is a pipe fitting used to transport flow in the piping system.SW fittings are belong to forged steel pipe fittings,the other type of forged fitting is threaded fittings.Forged fittings are high pressure fittings used in many applications.

MSS SP-97 Threadolethas the outstanding advantages of safety and reliability, cost reduction, simple construction, improved medium flow channel, series standardization, and convenient design and selection

ASTM A182 F316 is a popular grade for stainless steel in American Standard.Stainless steel fittings are popular because of the an-ti corrosive function.Stainless steel pipe fittings can used over 50 years.

ASTM A105 threaded fittings is commonly used carbon steel grade which is used to manufacture forge piping components such as forged fittings and flange of small diameter piping, generally for piping whose nominal diameter is NPS 2 or smaller.

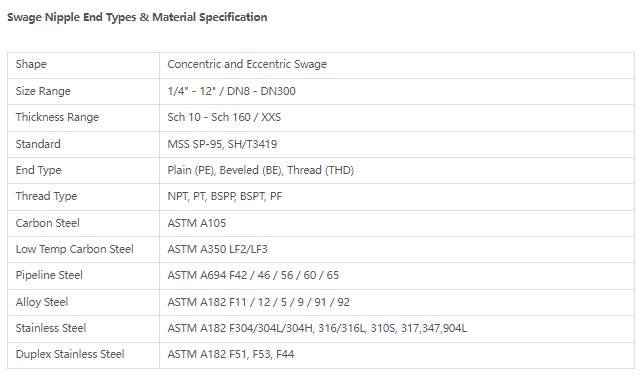

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

The coupling is used to make connection of two pipes. The maiterial is available in stainless steel, alloy steel and carbon steel. The size range is DN6-DN100.

The main purpose of using pipe caps is to waterproof the connections. They are also used to close the the ends of hydraulic or pneumatic pipes and tubes. The use of Forged End Pipe Caps is common in many industries such as oil and gas industries, chemical industries and water supply lines.

Pipe Nipple is a fitting, consisting of a short piece of pipe, usually provided with a male pipe thread at each end, for connecting two other fittings.

A234 WPB threaded coupling mainly consists of a main body and thread structures at both ends. The main body is usually cylindrical, and its length varies according to different specifications and usage requirements.

5in SW elbow is used to socketed with pipes and then welded on pipes.ASME B16.11 pipe fittings mean forged pipe fittings.Forged pipe fittings can be divided in socket weld fittings and threaded fittings.

Double threaded Swage Nipplet:Swage Nipple with external threads at both ends. The screw plug is used to plug the external thread pipe fittings at the end of the pipe, including square head pipe plug, hexagonal pipe plug, etc.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ –  4″ / DN6 – DN100

Pipe Tee is a most frequently used pipe fitting or connector nowadays. It functions the same as olets that means it is used to take a branch connection for linear pipeline. As the name TEE represents, the shape is T-shaped with two outlets, at 90° to the connection to the main line

There are various grade for Stainless Steel Forged Pipe Fittings: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.

Equal elbow is an elbow with the same diameter at both ends, which is characterized in that the pipeline connecting the two necks belongs to the same specification.

What is a SOCKET WELD-90 DEGREE ELBOW,what about its speicification and advantage

A Socket Weld Fittings is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Once correctly inserted, fillet type sealing welds are applied to join the pipe to the fitting.

Slip on flange also named as SO flange. SO flanges slip over pipes and are designed to bit slightly bigger on the inside than the pipe. They connect to the pipe through a fillet weld at the flange top and bottom.

Different from buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally, for piping whose nominal diameter is NPS 2 or smaller.

ASME B16.11 is the standard of both socket-welding and threaded. Threaded fittings are available in pressure ratings Class 2000, 3000, and 6000;
Socket welding fittings are available in pressure ratings Class 3000, 6000, and 9000.

Threaded elbow used thread connection to connect with the pipes.Pipe elbows have three types:THD (threaded),SW (socket weld),BW (butt welded).These elbows used different connections to connect with the pipes in piping system.Class 3000 forged fittings are the most used high pressure fittings.
