ANSI / ASME B16.11 Threaded Swage Nipple Manufacturers

Hex Head Bushing: A hex bushing is a threaded fitting with a hex head used to tighten the fitting into a threaded opening. Flush Bushing: Flush bushing are used in piping systems. They are installed in the pipe to reduce the size of the pipe. Forged bushing is ideal for use with water and oil in chemical, petrochemical, pulp, paper, shipbuilding, waste incineration, and semiconductor industry applications.

ASTM A105 threaded fittings is commonly used carbon steel grade which is used to manufacture forge piping components such as forged fittings and flange of small diameter piping, generally for piping whose nominal diameter is NPS 2 or smaller.

These Stainless Steel Pipe Fittings are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

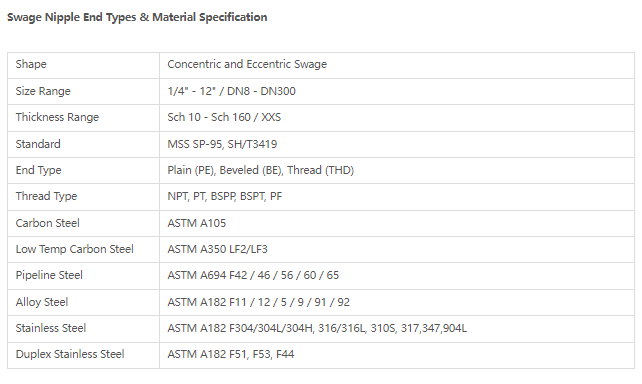

Double threaded Swage Nipplet:Swage Nipple with external threads at both ends. The screw plug is used to plug the external thread pipe fittings at the end of the pipe, including square head pipe plug, hexagonal pipe plug, etc.

The body of the branch abutment is made of high-quality forgings, which are made of the same materials as the pipes, including carbon steel, alloy steel, stainless steel, etc. The branch pipe seat and the main pipe are welded

We manufacture and export High Pressure Pipe Fittings. Threaded Coupling is usually packaged by wooden case.

Reducing pipe (reducing nipple) is a pipe fitting used for straight-line connection of two pipes with different sizes to realize pipe diameter reduction. There are concentric reducing joints and eccentric reducing joints

ASTM A182 F304 threaded half nipples, are nipples with one end thread and the other end weld. The other shape of nipples are threaded full nipples,which are both ends with thread.Pipe nipples also have sock weld connection,they are similar to threaded nipples,the only difference is threaded nipples use thread,while SW nipples use socket welded.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

The specification of ASTM A182 Forged Pipe Fittings includes forged fittings, stainless steel, rolled alloy, forged alloy, pipe flanges as well as high-temperature service. Later then forgings and hot working, it would be cooled down to a certain temperature before heat treatment.
The Alloy Steel A182 Threaded Elbow material grade contains ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22.

ASTM A106 SCH160 threaded nipples are carbon steel pipe fittings that have widely used range.There are two shapes for choose:TOE(threaded one end) and TBE (Threaded both ends).

Threaded fittings are mainly used for small pipe diameters, generally for piping whose nominal diameter is NPS 2 or smaller. Threaded joints probably represent the oldest method of joining piping systems.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

What is a threaded elbow,what about its specification and its advantages.

Threadolet has the same basic design as a weldolet. The commonly used manufacturing standards of the branch stand include MSS sp-97, GB / t19326 and other standards.

Threaded tee used thread connection to combine with pipes.ASME B16.11 fittings are forged fittings belong to American Standard.Tees can divided as equal tee and reducing tee.These tees have same functions,the only difference is reducing tee can reduce the flow in piping system.

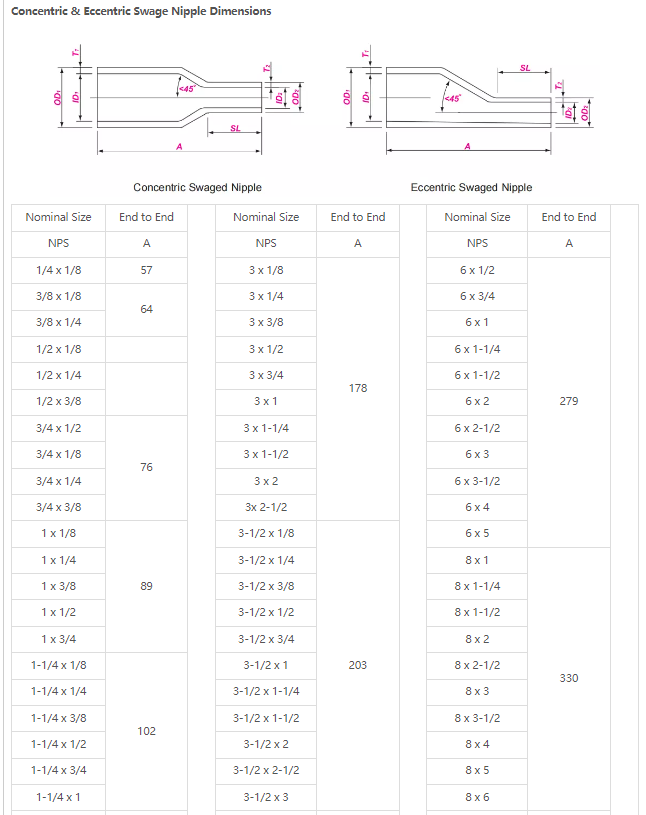

Pipe Swage Nipple (also known as reducing nipple) is divided into tubing sub and casing sub. Flanging nipple in pipe connection is commonly used with flange.

ASME B16.11 forged fittings are popular because of the famous American Standard and the variety products.Socket weld (SW) fittings and threaded (THD) fittings are both forged fittings.Stainless steel pipe fittings are always chosen in corrosive and chemical environments.

High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Range: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

BSP Pipe Fittings Specification
Type: Elbow /Tee /Cross /Coupling /Cap/Union /Nipple /Plug /Bushing
Material: CS/LOW TEMP CS/PIPELINE STEEL/ALLOY STEEL /SS/ DUPLEX SS
Standard: ASME B16.11, BS3799
Size: 1/8IN-4IN/DN6-DN10
Rating: 2000lbs,3000lbs,6000lbs

The equal cross is one kind of the pipe cross,  the equal cross means all the 4 ends of the cross are in same diameter.
The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

The overall shape of the A105N hex head plug is a combination of a hexagonal head and a plug body. The hexagonal head design is convenient for operation with tools such as wrenches, and can provide better torque transmission, so that the tube plug can be tightened or loosened.

Socket Weld Half Couplings is utilised in various applications in order to provide a torque free sealing and a leak free connection. Socket weld coupling is a very short section of pipes with socket bore at both ends or one end, but both can afford high pressure of 3000#, 6000#, 9000#. The Socket Weld Half Coupling are often directly welded to the run pipe, to form a branch connection.

Carbon Steel: ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

Threaded couplings used thread connection to connect two pipes.Threaded coupling is belong to forged steel fittings.The other type of forged fitting is socket weld fittings.All the forged fittings are high pressure pipe fittings.

We are the ISO certified manufacturer who produce and export ASME B16.9 and ASME B16.11 Steel Pipe Fittings. Threaded Steel Coupling is a short piece with screw in NPT or BSP ends or one end, which is available in stainless steel, alloy steel and carbon steel. The size range is DN6-DN100.

High pressure Stainless Steel A182 Threaded Tee is used for providing branch, it can be divided into equal tee and reducing tee. The common used dimension is DN15, DN20,DN25 and DN40 for socket weld tee and threaded tee.
