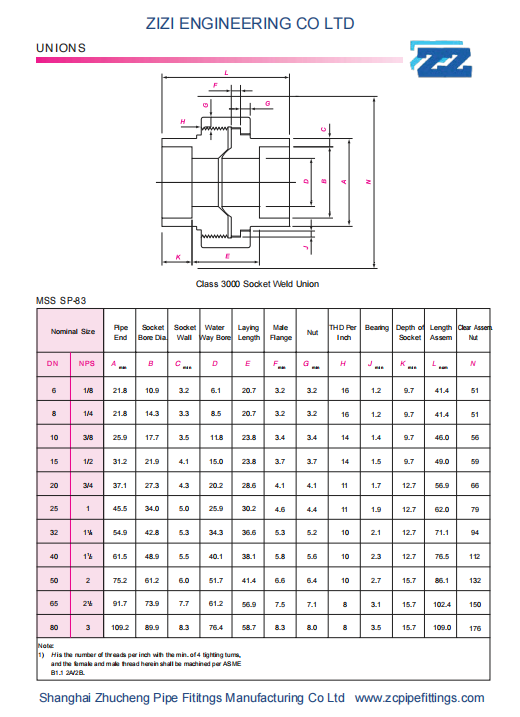

A182 SS316L Stainless Steel SW Union

CL3000 socket weld tees are the most used pressure pipe fittings because of the wide using range.ASME B16.11 forged pipe fittings are including SW and THD fittings.

Socked Weld Elbow
Material: Stainless Steel
Type: 90 Degree and 45 Degree
Pressure Rating: CL3000

Socket weld cross is a pipe fitting used to transport flow in the piping system.SW fittings are belong to forged steel pipe fittings,the other type of forged fitting is threaded fittings.Forged fittings are high pressure fittings used in many applications.

What is a Socket weld Uninon,what about its speicification and advantage

5in SW elbow is used to socketed with pipes and then welded on pipes.ASME B16.11 pipe fittings mean forged pipe fittings.Forged pipe fittings can be divided in socket weld fittings and threaded fittings.

According to its radius of curvature, there are long radius elbow and short radius elbow. Long radius elbow refers to its radius of curvature is equal to 1.5 times the outside diameter of the pipe, that is, R=1.5D; A short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R= 1.0d.(D is the diameter of the elbow, and R is the radius of curvature).

Socket Weld Coupling material can be divided into carbon steel, alloy steel and stainless-steel.
Socket welding Pipe fittings are available in pressure ratings Class 3000, 6000, and 9000.
There are various types of  socket-welding Tube fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet

A182 F316 hex nipples are short nipples made of stainless steel and have a hexagonal structure. This type of nipples plays a key role in pipeline connections and can meet the needs of different pipeline designs. Common types of stainless steel hexagonal nipples include equal-diameter hexagonal nipples and reducing-diameter hexagonal nipples.

Size Range: 1/8″ –  4″ / DN6 – DN100
Schedule Chart: STD, XS, SCH 160
Standard: MSS SP-97
Carbon Steel: ASTM A105 / A105N
Low Temp Carbon Steel: ASTM A350 LF2/LF3
Pipeline Steel: ASTM A694 F42/46/56/60/65
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L
Duplex Stainless Steel ASTM A182 F51, F53, F44

Size Range: 1/8″ –  4″ / DN6 – DN100
Schedule Chart: STD, XS, SCH 160
Standard: MSS SP-97
Carbon Steel: ASTM A105 / A105N
Low Temp Carbon Steel: ASTM A350 LF2/LF3
Pipeline Steel: ASTM A694 F42/46/56/60/65
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L
Duplex Stainless Steel ASTM A182 F51, F53, F44

5IN socket welded coupling is a commonly used forged fitting in piping systems.ASME B16.11 pipe fittings are forged pipe fittings including SW fittings and THD fittings.Socket welded coupling can socketed with the pipes and then welded on pipes.

What is a SOCKET WELD-90 DEGREE ELBOW and what about its specification and advantages.

These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. The connection with the pipe is done with 1 fillet weld, at the outside of the flange. But before welding, a space must be created between flange or fitting and pipe.

Socket welded elbow can socket with pipes and welded on pipes.SW fittings are belong to forged fittings,the other type of forged fitting is threaded fittings.Forged fittings are high pressure fittings used in many applications.

The main purpose of using pipe caps is to waterproof the connections. They are also used to close the the ends of hydraulic or pneumatic pipes and tubes. The use of Forged End Pipe Caps is common in many industries such as oil and gas industries, chemical industries and water supply lines.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45°,90° and 180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

Forged socket weld elbow is available in 90 degree and 45 degree that used to connect the ASME pipe to fittings or valves by fillet seal welding. It has varieties of features such as reliability, durability and dimensional precision.

Socket weld 45 deg lateral tees are belong to pipe tees,but is a special type of pipe tees.These lateral tees could change the direction in 45 degree of the pipes.

SW tees have two types:Equal and Reducing.SW fittings have same ranges of size(1/8”-4”) and pressures(2000lb,3000lb,6000lb,9000lb).Class 3000 is the most common used among these pressures.Class 3000 can be labeled as 3M,where M means 1000,class 3000 fittings can withstand up to 3000 PSI.

Carbon Steel: ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

ASME B16.11 is the standard contains ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded. Threaded fittings are available in pressure ratings Class 2000, 3000, and 6000; Socket welding fittings are available in pressure ratings Class 3000, 6000, and 9000.

What is a SW coupling and what about its size and specification

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

A Socket Weld Fittings is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Once correctly inserted, fillet type sealing welds are applied to join the pipe to the fitting.

Carbon steel pipe fittings are used in many applications because of its great excellent functions.Carbon steel pipe fittings can manufactured as THD (threaded) fittings,SW (socket weld) fittings and (BW) butt welded fittings.The specifications are in the content below.
