45 Degree Elbow Buttweld Fittings Manufacturer

Equal diameter tee, also known as straight tee, the branch diameter of the tee is the same as the pipe diameter of the tee. The three branches of tee have same diameters.

These Stainless Steel Pipe Fittings are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

Carbon steel tee is the most used type in all tees because carbon steel has great functions and affordable price.Galvanized pipe fittings has better anti-corrosive function than normal carbon steel pipe fittings,galvanized fittings have similar functions as stainless steel fittings,but the price is cheaper than stainless steel fittings.

Concentric reducer in a pipe system, its making process and its difference between a eccentric reducer.

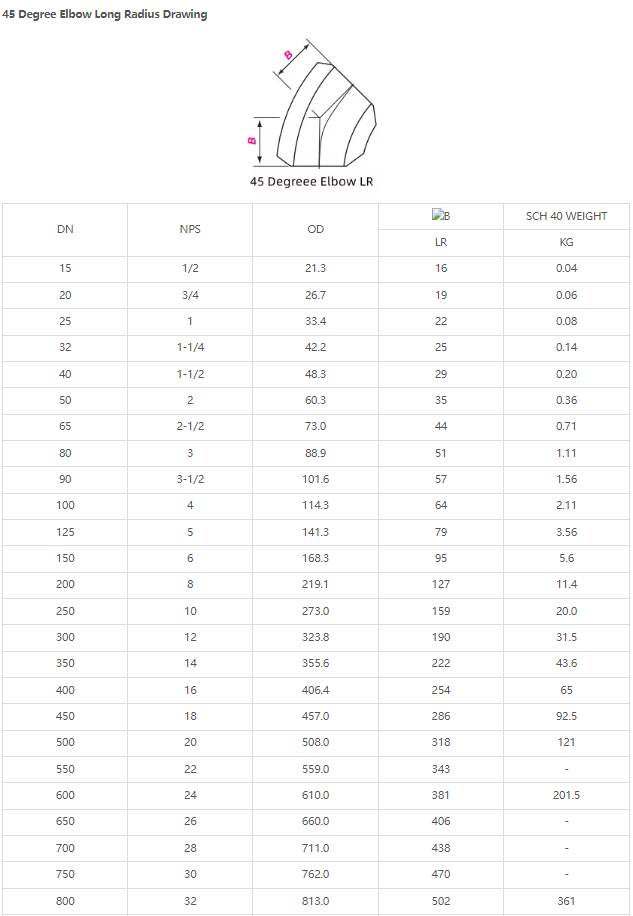

45 deg elbow has three types:BW,SW,THD.Among these,The commonly used elbows can be 45 deg and 90 deg.BW (butt welded) 90 degree elbows have LR (long radius) and SR (short radius) while 45 degree elbows only have LR type.

Elbow is a pipe fitting that changes the direction of piping. According to the Angle, there are 45° and 90°180° three most commonly used. Elbow material can be divided into carbon steel, alloy steel and stainless-steel.

The elbow radius mean curvature radius. If the radius is the same as pipe diameter, it called short radius elbow, also called SR elbow, normally for low pressure and low speed pipelines. If the radius is larger than pipe diameter, R ≥ 1.5 Diameter, then we call it a long radius elbow (LR Elbow), applied for high pressure and high flow rate pipelines.

An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter. An equal tee is, therefore, used to connect two pipes of the same nominal diameter.

Carbon BW tee is wide used in many applications because welded connection can provide permanent connection.Schedule XS is wall thickness of this tee in the picture.In addition,the commonly used wall thicknesses:SCH40, SCH80.

Steel pipe elbow is a key part in a pressure piping system used to change the fluid flow direction. It is used to connect two pipes with same or different nominal diameters, and to make the pipe and thus the fluid direction turn to a certain direction of 45 degree or 90 degree. This change in fluid flow direction adds pressure losses to the system due to impact, friction and re-acceleration.

Butt weld fittings are manufacture by seamless or welded pipe. For pipe fittings manufacturers, the forming process of welded pipe and seamless pipe is basically same. Butt welded fittings can be divided into carbon steel butt welded fittings and stainless-steel butt-welded fittings

What is a steel pipe tee and what about its standard

45in BW reducer is belong to large dimension butt welded fittings,STD is a commonly used wall thickness for BW fittings.Other commonly used wall thicknesses for BW fittings are SCH 40,SCH 80.

Butt welded cross is pipe fitting used to transport the flow in piping systems.BW cross can connect four pipes vertically with welded connection.Cross can be two types:Equal and Reducing.These crosses have similar functions,but reducing tees can reduce the flow while equal tees can not.

Concentric reducer is used to join pipe sections or tube sections on the same axis The length dimension of the reducer is almost equal to the average of the big bore and smaller bore pipe diameters.

Carbon steel tee is the most used tees because of the great material.Shanghai Zhucheng is an excellent pipe fittings supplier who supplys high quality pipe fittings and flanges for years.Carbon steel fittings are used in many applications because of its great excellent functions.

In the layout of the pipeline system, long radius elbows should generally be used for connection, and short radius elbows are usually used in places where the installation position of the pipeline system is compact or to reduce costs

Stainless concentric reducer is belong to BW (butt welded) fittings.Reducer can be two types:Concentric (COC) Reducer and Eccentric (ECC) Reducer.The main difference of these two typws are the internal structure.Stainless steel pipe fittings have better functions than other material pipe fittings.

What is a 90 degree elbos and its classification.

45 deg BW elbow can change the direction of fluids or gas by 45 deg,it only has LR (long radius) type while 90 deg butt welded elbow has both LR and SR(short radius) types.Carbon steel is the most used material in pipe fittings because it has great functions to satisfy many applications.

BW carbon tee are popular because carbon steel has great functions and cheap price.Coated pipe fittings also used in piping systems as the coating can enhance the functions for normal carbon steel.Galvanized coating is the most used coating,it can enhance the anti-resistance function.

Steel pipe elbow is a key parts in a piping system for to change the fluid flow direction. It is used to connect two pipes with same or different nominal diameters, and to make the pipe turn to a certain direction of 45 degree or 90 degree.

BW elbows have the most wide used range in all types of elbows.Shanghai Zhucheng is an excellent supplier for pipe fittings,all the fittings made from carbon steel and alloy steel will have anti-rust paint,and stainless steel fittings will have anti-rust oil to protect the fittings in the sea transportation.

Reducing tee is a kind of pipe fitting whose branch size is smaller than the size of pipeline parts. It is used for main pipe string accessories, solvent welding accessories, side outlet and conflicting soluble welding accessories.

Carbon steel butt welding 90 degree elbow is a connector specially designed for use in piping systems. Its main function is to create a 90 degree turn in the pipe so that the fluid can flow along a predetermined path.
