316 Stainless Steel Threaded Full Coupling Heavy Pattern

What is a treaded nipple,what about its specification and its difference between coupling.

In small diameter pipes (below DN50), reducing nipples are also often used to replace reducing joints for pipe reducing. Reducing nipples also have concentric and eccentric parts

The equal cross is one kind of the pipe cross,  the equal cross means all the 4 ends of the cross are in same diameter.
The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

The main purpose of using pipe caps is to waterproof the connections. They are also used to close the the ends of hydraulic or pneumatic pipes and tubes. The use of Forged End Pipe Caps is common in many industries such as oil and gas industries, chemical industries and water supply lines.

High pressure forged steel tee is used for providing branch, it can be divided into equal tee and reducing tee.High pressure tee is used for adding pipe branchs. An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.

CL3000 threaded couplings are the most used pressure of couplings,there are still CL2000 and CL6000 to choose.ASTM A105 forged pipe fittings are usually be chosen because of the affordable price and great functions.

TOE means threaded at one end when translated. Thus, we can say that a nipple TOE is a nipple that has one threaded end.
In this case, we have the acronym TBE for “threaded both ends” which means threaded at both ends. In other words, this is the most typical type of nipple as described above for connecting two parts or fittings with female threading.

Reducing pipe (reducing nipple) is a pipe fitting used for straight-line connection of two pipes with different sizes to realize pipe diameter reduction. There are concentric reducing joints and eccentric reducing joints

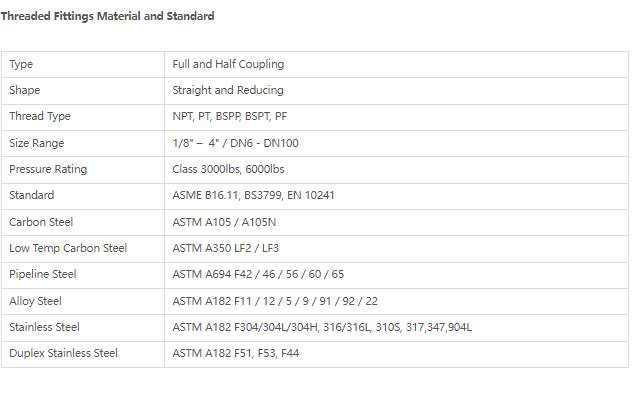

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

What is aHex Nipple and what about its specification and advantages.

CL3000 threaded coupling is the most used pressure of couplings.ASTM A105 forged fittings are pipe fittings in material of carbon steel.ASTM A105 specification is also including forged flanges.

A combination of pipe nipples are recommended for low-pressure discharge and suction service for various compatible liquids and not for compressible products like air, nitrogen or steam.

The equal cross is one kind of the pipe cross,  the equal cross means all the 4 ends of the cross are in same diameter.
The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

A swage nipple is something similar to that of a reducer but it is used to join the butt welded pipe with a socket welded or screwed pipe.Like the reducer,swage nipple is also available with two variations:concentric swage nipple and eccentric swage nipple.The swage nipple generally adopts the MSS SP-95 or the BS3799 Standard.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Range: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

SS304 90 deg elbow is a stainless steel pipe fitting used to changes the direction of the flow in 90 degree.Threaded steel pipe fittings are a type of forged steel pipe fittings.The other forged fitting is SW pipe fitting.

High pressure Stainless Steel A182 Threaded Tee is used for providing branch, it can be divided into equal tee and reducing tee. The common used dimension is DN15, DN20,DN25 and DN40 for socket weld tee and threaded tee.

Threaded Steel Coupling is a short piece with screw in NPT or BSP ends or one end, which is available in stainless steel, alloy steel and carbon steel. The size range is DN6-DN100.

The body of the branch abutment is made of high-quality forgings, which are made of the same materials as the pipes, including carbon steel, alloy steel, stainless steel, etc. The branch pipe seat and the main pipe are welded

Carbon Steel: ASTM A105 / A105N, ASTM A350 LF2/LF3, ASTM A694 F42 / 46 / 56 / 60 / 65, P235GH, P265GH, P280GH, P355GH
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L，1.4404, 1.4437.
Duplex Stainless Steel: ASTM A182 F51, F53, F44

Forged Olets Pipe Fitting is generally made of integral forging. The structure of the weldolet is divided into main pipe connection end, reinforcement part and branch pipe connection end.

What is a Threaded Coupling,what about its specification and its advantages.

These Stainless Steel Pipe Fittings are best known for their heat resistance, creep strength and tensile strength. Machined and fabricated to meet your diverse piping requirements, these pipes fittings exhibit excellent corrosion resistance in a wide range of atmospheric environments.

The threaded pipe union is similar to the coupling and can be flexibly disassembled when it needs to be repaired or replaced. The reducing threaded union is easy to disconnect and link, and can be operated multiple times.

In general, carbon steel pipe fittings and flanges are widely used for applications which do not require materials with higher resistance to corrosion such as stainless steel and alloy steel. Carbon Steel Fittings is primarily used across piping systems for its hardness, moderate to good tensile strength and inexpensiveness.

Pipe Swage Nipple (also known as reducing nipple) is divided into tubing sub and casing sub. Flanging nipple in pipe connection is commonly used with flange.

Threaded elbow used thread connection to connect with the pipes.Pipe elbows have three types:THD (threaded),SW (socket weld),BW (butt welded).These elbows used different connections to connect with the pipes in piping system.Class 3000 forged fittings are the most used high pressure fittings.

We are the ISO certified manufacturer who produce and export ASME B16.9 and ASME B16.11 Steel Pipe Fittings. Threaded Steel Coupling is a short piece with screw in NPT or BSP ends or one end, which is available in stainless steel, alloy steel and carbon steel. The size range is DN6-DN100.
