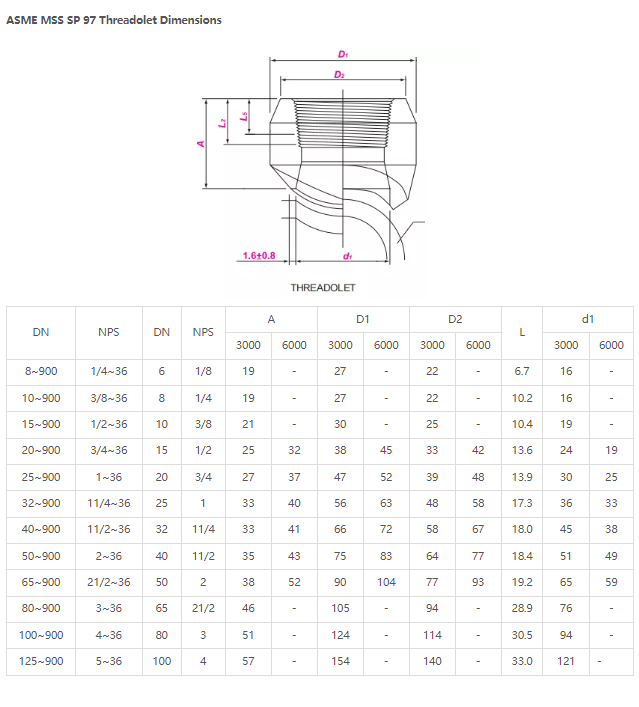

3000# MSS SP-97 FNPT Galvanized Threadolet

The branch pipe stand is also called branch pipe seat, saddle and saddle type pipe joint. Reinforced pipe fittings mainly used for branch pipe connection, instead of branch pipe connection such as reducing tee, reinforcing plate and reinforced pipe section

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

Used for all sorts of media: chemical substances, petrochemical products, liquefied gas – especially in loading/unloading applications. There are also couplings intended for highly aggressive chemical substances, lined with ECTFE – a polymer resistant to chemicals.

Shapes:
Equal：This is a Pipe fitting with the same size on three sides.
Reducing：The main pipe of these tee is different from the diameter of the branch pipe, and the diameter of the main pipe is larger than that of the branch pipe.

Equal tees are available in sizes from half an inch to 48 inches (or larger) and in seamless and welded execution (seamless up to 24 inches, welded for tee sizes above 24 inches).

Forged Olets Pipe Fitting is generally made of integral forging. The structure of the weldolet is divided into main pipe connection end, reinforcement part and branch pipe connection end.

High Pressure Steel Pipe Fittings contain buttwelding pipe fittings, socked weld fittings and threaded pipe fittings. Threaded Steel Coupling is a short piece with screw in NPT or BSP ends or one end, which is available in stainless steel, alloy steel and carbon steel. The size range is DN6-DN100. There are various grade of A694 Threaded Coupling, Such as A694 F42 / 46 / 52 / 56 / 65 / 70

ASTM A182 F304 threaded half nipples, are nipples with one end thread and the other end weld. The other shape of nipples are threaded full nipples,which are both ends with thread.Pipe nipples also have sock weld connection,they are similar to threaded nipples,the only difference is threaded nipples use thread,while SW nipples use socket welded.

90° Steel Pipe Elbow is the most commonly used elbow type in pipe system with the function to change the direction of fluid in 90 degree. It connects pipes with same or different diameter.

There are different types such as the threaded reducing hex nipple or the Stainless Steel Threaded Hex Nipple. However, it is different from ordinary threaded nipple.

What is aHex Nipple and what about its specification and advantages.

In general, carbon steel pipe fittings and flanges are widely used for applications which do not require materials with higher resistance to corrosion such as stainless steel and alloy steel. Carbon Steel Fittings is primarily used across piping systems for its hardness, moderate to good tensile strength and inexpensiveness.

Threaded Pipe Fittings Specification
Shape: Elbow,Tee, Cross, Coupling, Cap, Swage Nipple, Bushing, Plug, Nipple, Union, Hex Nipple,Threadolet.
Size Range: 1/8″ –  4″ / DN6 – DN100
Pressure Rating: Class 2000lbs, 3000lbs, 6000lbs
Thread Type: NPT, PT, BSPP, BSPT, PF
Standard: ASME B16.11, BS3799, EN 10241, MSS SP-83, MSS SP-97

Reducing pipe (reducing nipple) is a pipe fitting used for straight-line connection of two pipes with different sizes to realize pipe diameter reduction. There are concentric reducing joints and eccentric reducing joints

What is a plug,what about its specification and its difference between a caps.

Threadolet considered to a threaded fitting, and it is manufactured in 3000 and 6000 classes. t typically is in the size range of 1/2″ to 2” and is welded over a hole either drilled or burned in the pipe.

According to its radius of curvature, there are long radius elbow and short radius elbow. Long radius elbow refers to its radius of curvature is equal to 1.5 times the outside diameter of the pipe, that is, R=1.5D; A short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R= 1.0d.(D is the diameter of the elbow, and R is the radius of curvature).

BSP Pipe Fittings Specification:
Type: Elbow /Tee /Cross /Coupling /Cap/Union /Nipple /Plug /Bushing
Material: CS/LOW TEMP CS/PIPELINE STEEL/ALLOY STEEL /SS/ DUPLEX SS
Standard: ASME B16.11, BS3799
Size: 1/8IN-4IN/DN6-DN10
Rating: 2000lbs,3000lbs,6000lbs
British Standard Pipe Parallel (BSPP)

Swaging nipple (also known as reducing nipple) is a forged pipe fitting. It is used to change the diameter of the pipe and connect two pipes of different sizes.

Forged threaded elbows are very common in chemical, oil refining, petrochemical and other industries, and are also used in some other industries.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ – 4″ / DN6 – DN100
Materal: Stainless Steel, Alloy Steel and Carbon Steel

Double threaded Swage Nipplet:Swage Nipple with external threads at both ends. The screw plug is used to plug the external thread pipe fittings at the end of the pipe, including square head pipe plug, hexagonal pipe plug, etc.

The base of the threaded branch pipe stand is the same as that of the butt welded branch pipe stand, but its branch connection is screw connection, which does not require welding. The threaded branch pipe has two pressure classes, 3000 # and 6000 #.

There are various types of ASME B16.11 socket-welding fittings, such as Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, Union and Sockolet; while ASME B16.11 threaded fittings can be furnished in product forms of Elbow, Cross, Tee, Coupling, Half Coupling, Boss, Cap, plug and bushing.

Threaded elbow and coupling are used thread type to connect the pipes to trsnsport flow in piping system.THD fittings are belong to forged fittings,ASME B16.11 fittings are American Standard for forged fittings.

Concentric swage nipple is mainly used for vertical pipeline. t is used to change the diameter of the pipe and connect two pipes of different sizes.

Type: Full and Half Coupling
Shape: Straight and Reducing Coupling
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8″ –  4″ / DN6 – DN100
